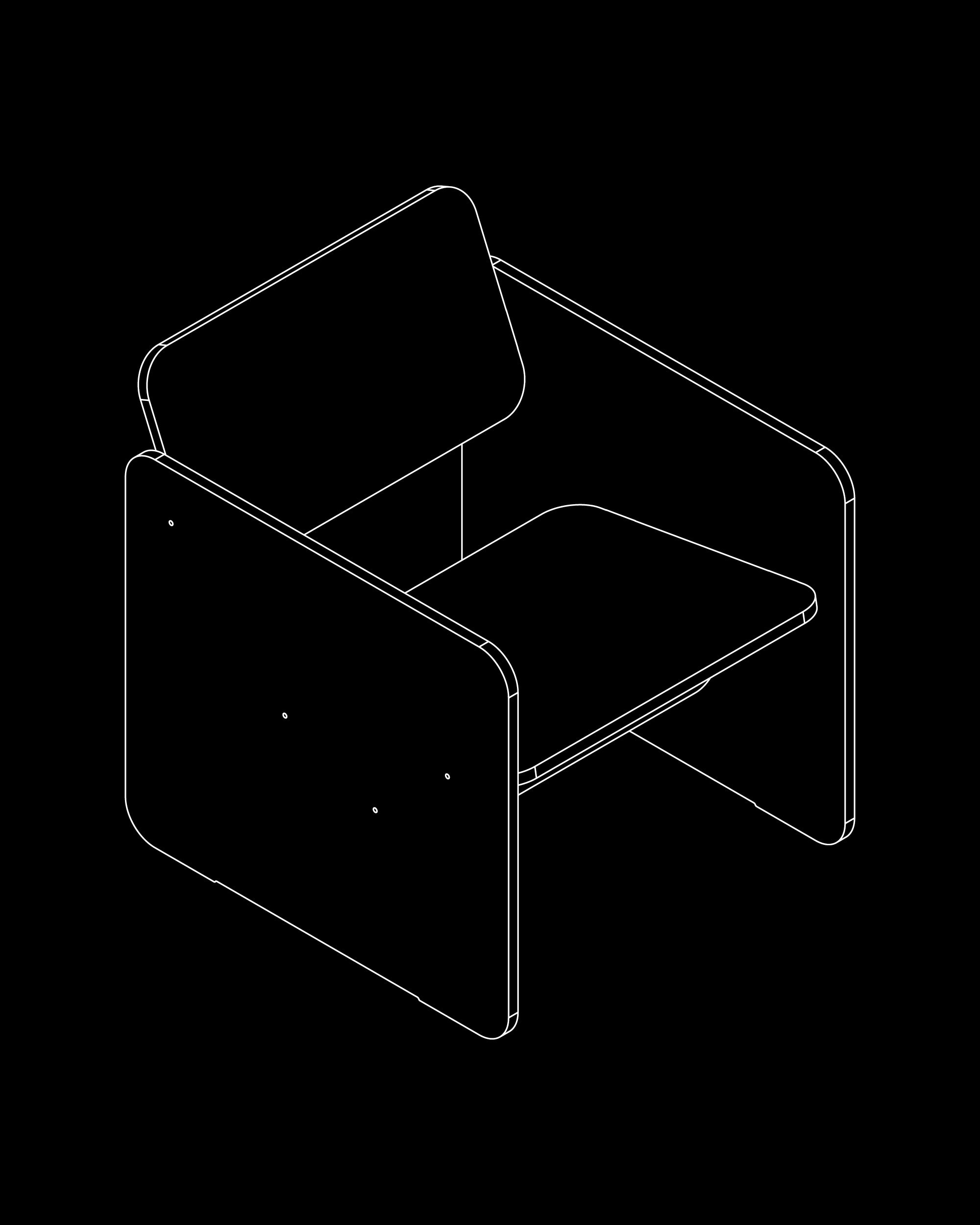

Slab Lounge Chair — Assembly guide

Step 1

Insert the nut into the plastic housing. Press firmly to ensure it sits fully inside. Repeat for all.

Step 2

Insert the plastic housing with the nut inside, into the pill-shaped slot. Ensure it’s oriented as shown and no part is protruding. Repeat for all.

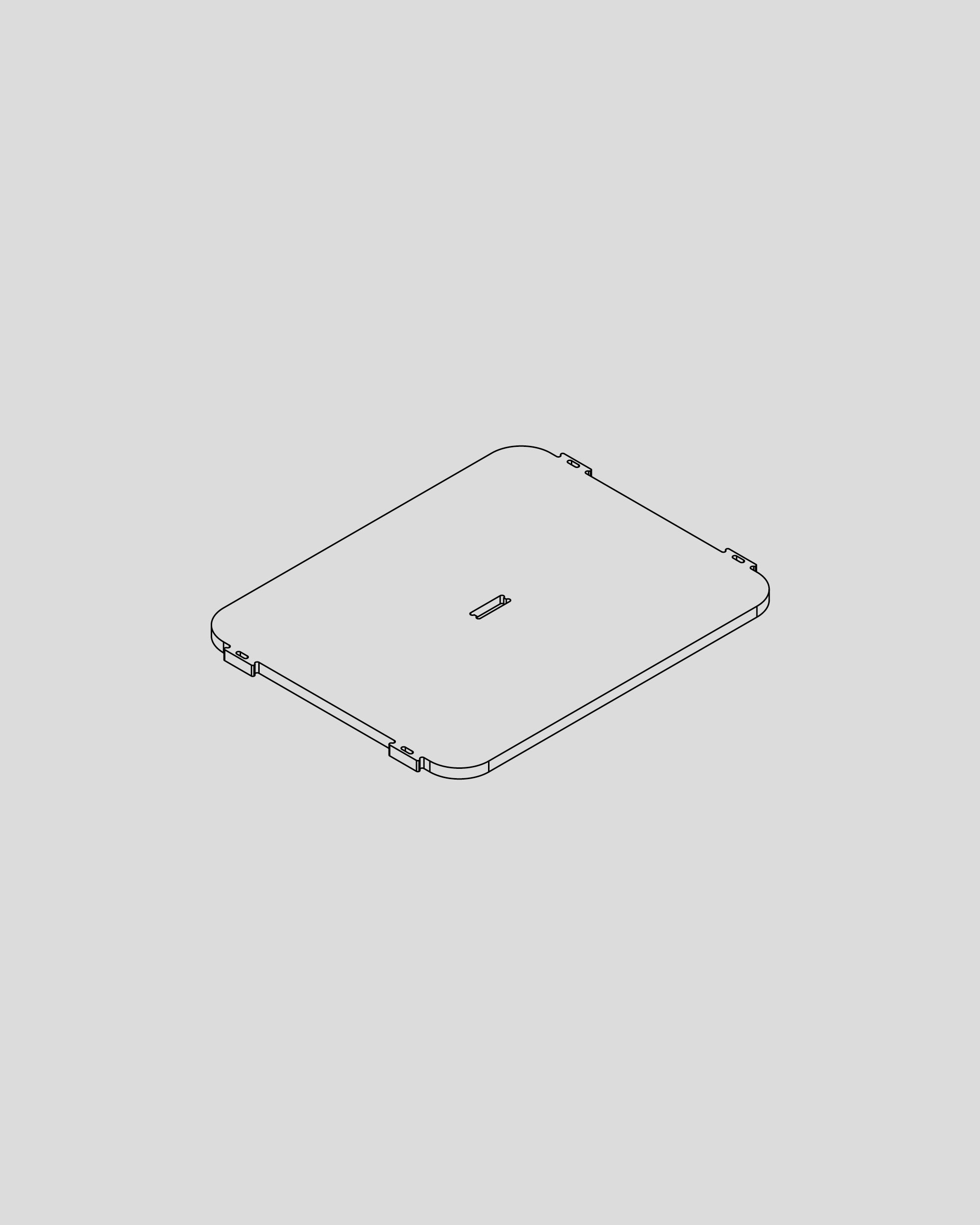

Step 3

Place the seat on a flat and soft surface with the pocket facing upward.

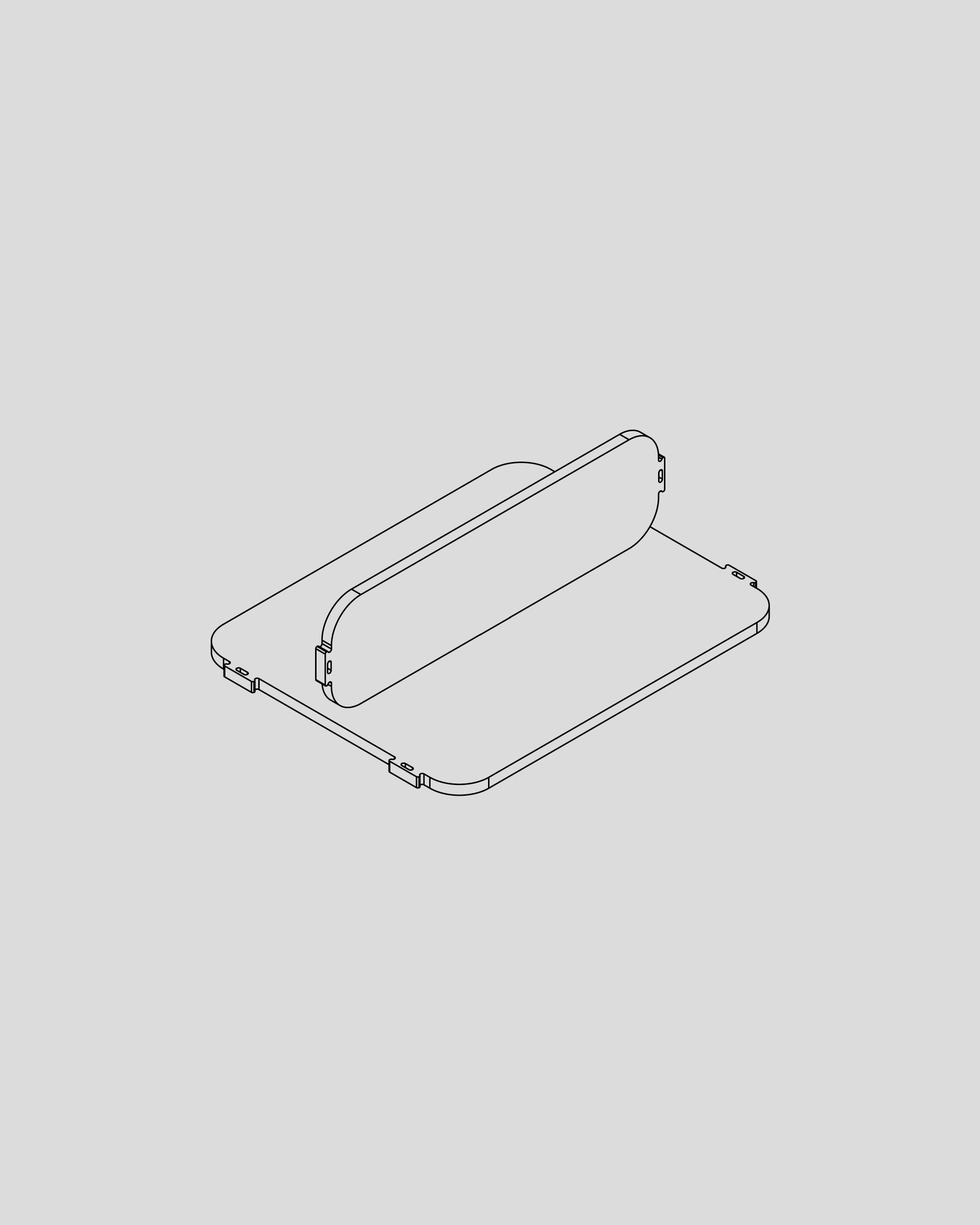

Step 4

Fit the cross-beam into the pocket of the seat. Set aside.

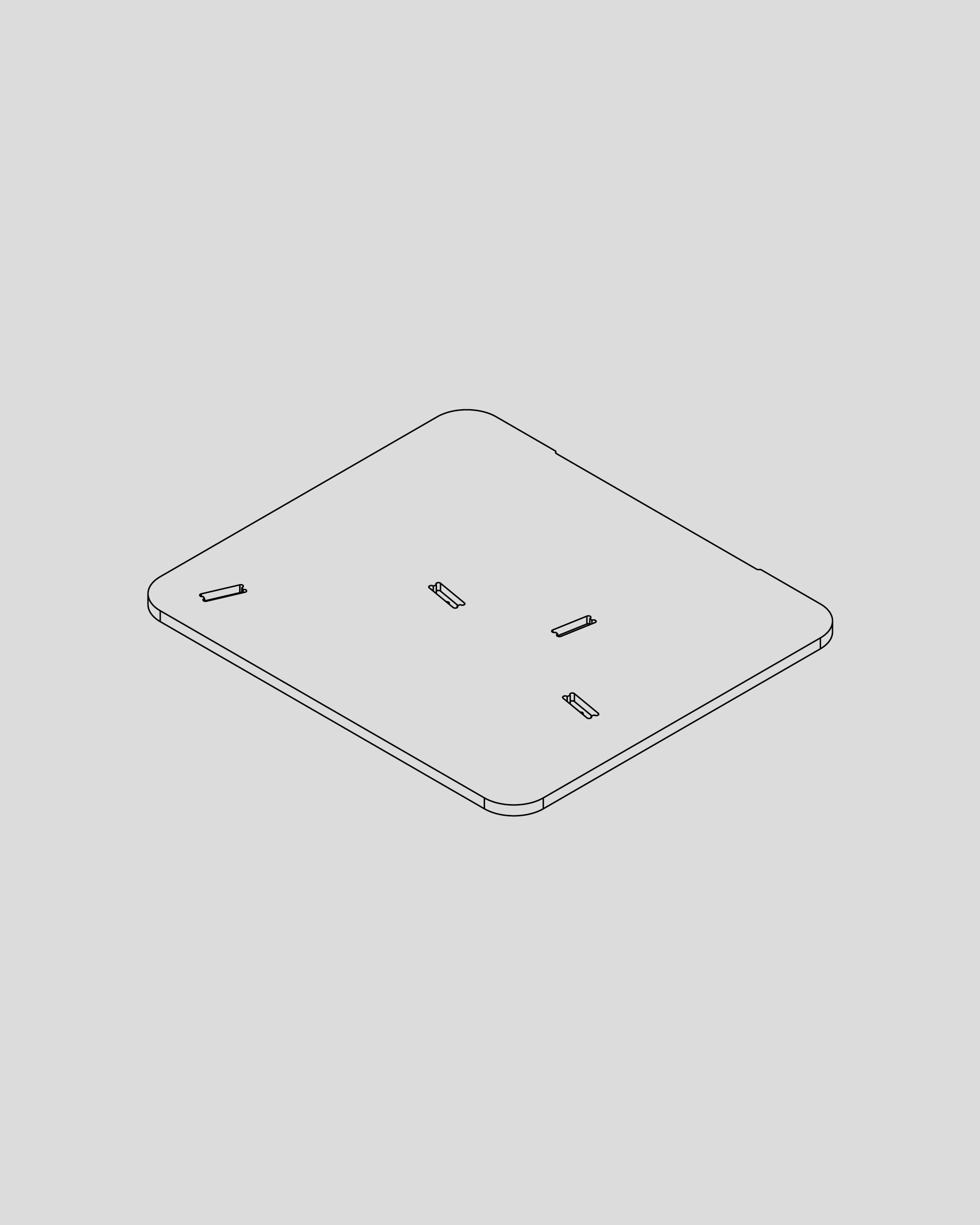

Step 5

Lay one of the sides on a flat and soft surface with the pockets facing upward.

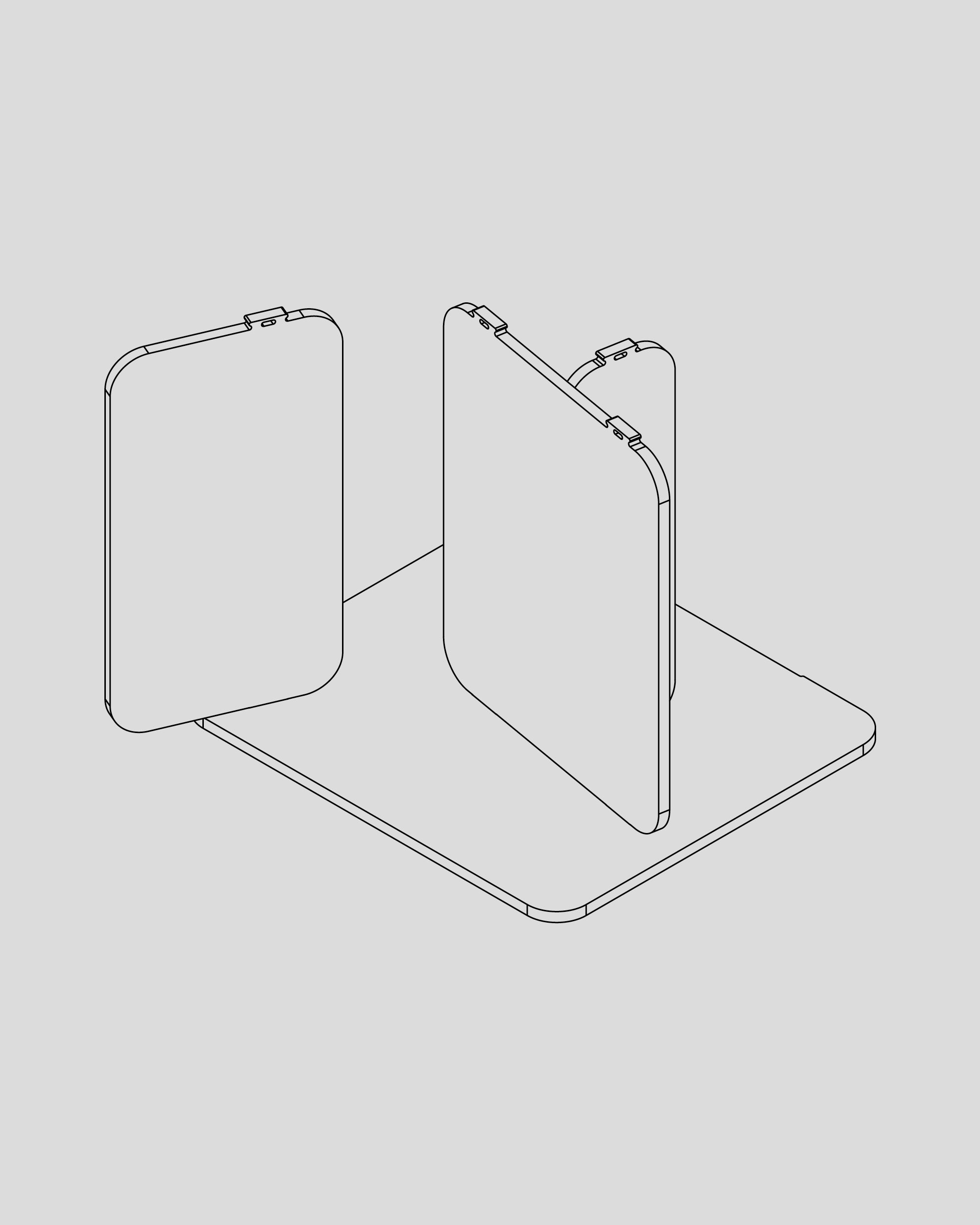

Step 6

Fit the backrest, seat, and cross-beam into their corresponding pockets. Ensure the backrest is positioned correctly.

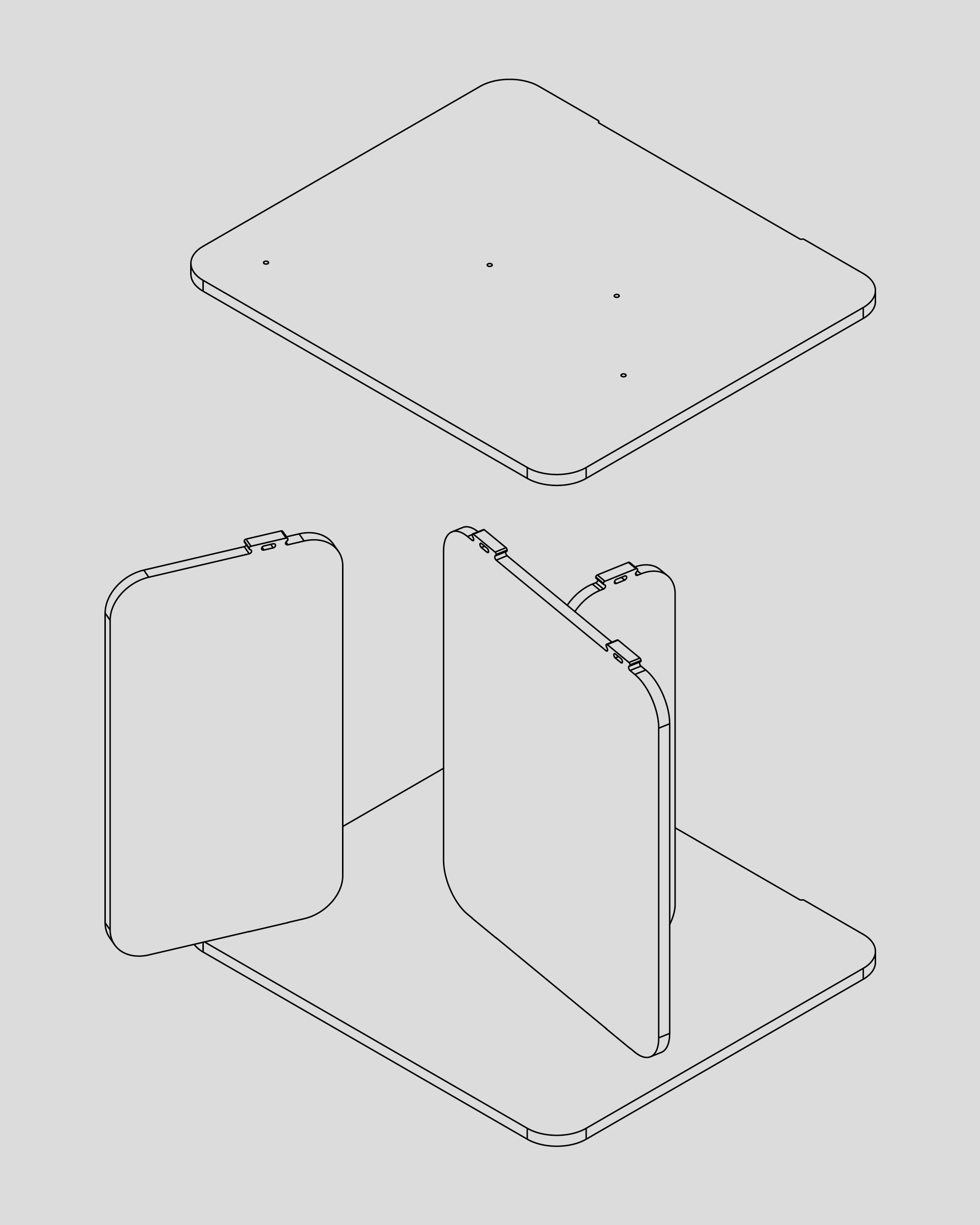

Step 7

Fit the remaining side onto the backrest, seat and cross-beam. Take your time to fit all pieces into their corresponding pockets.

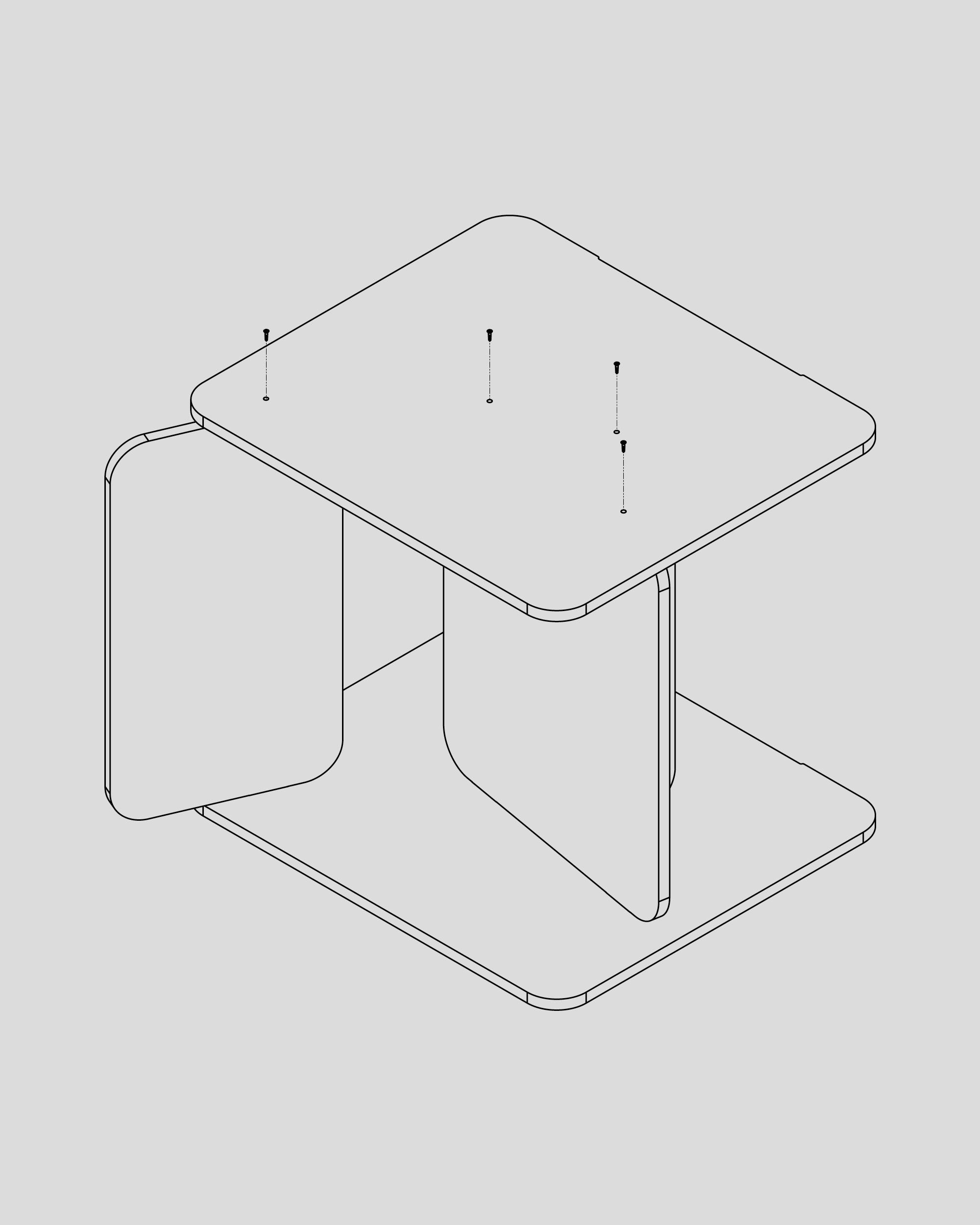

Step 8

Using a non-electric flat-head screwdriver, drive in the four screws to secure the side piece. Stop when the head sits flush with the surface; avoid over-tightening. Carefully flip the chair over, ensuring the pieces remain securely in their pockets. You may need a helping hand.

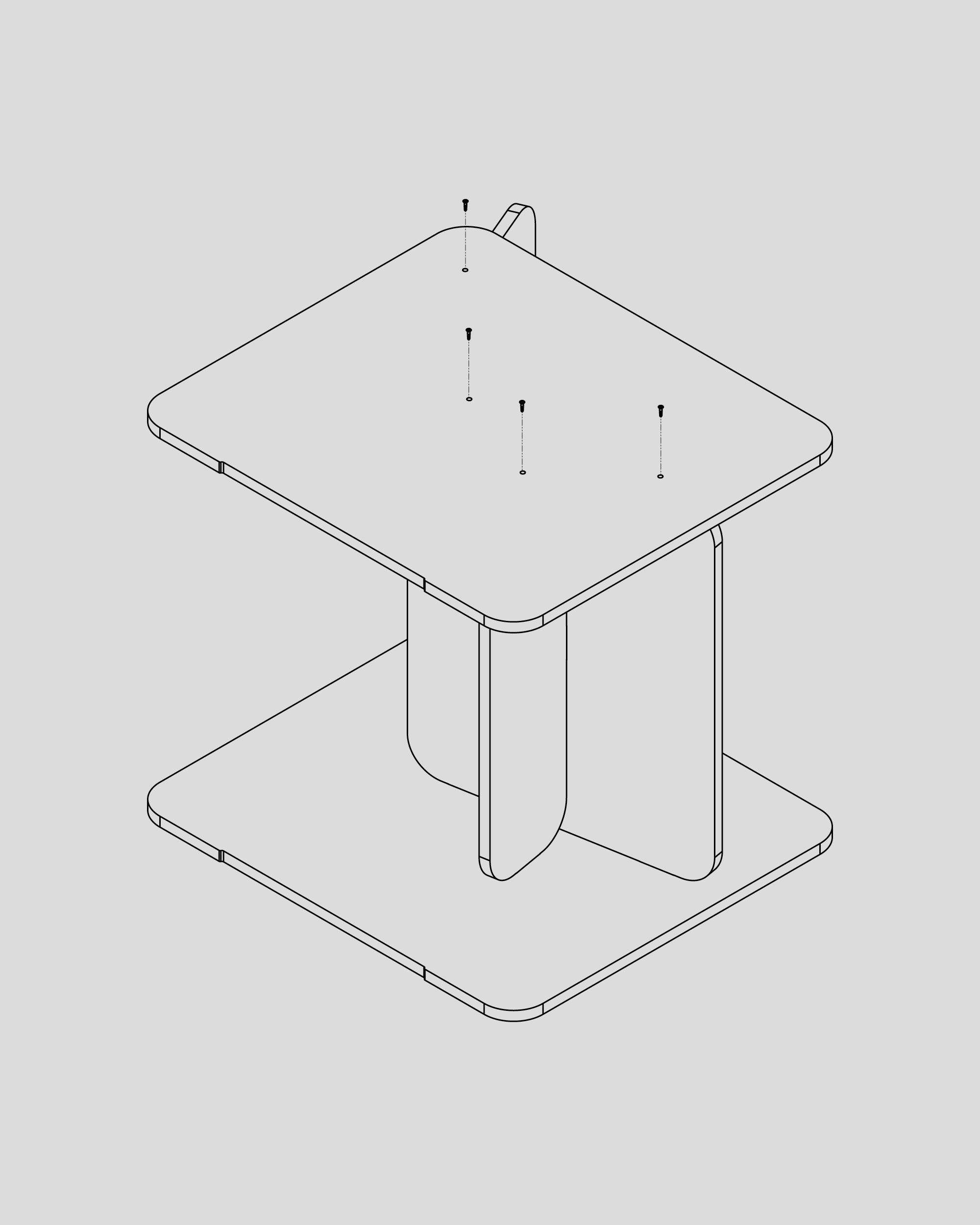

Step 9

Drive in the remaining four screws using a non-electric flat-head screwdriver. Stop when the head is flush with the surface; avoid over-tightening. Flip the chair over so it stands on the floor.

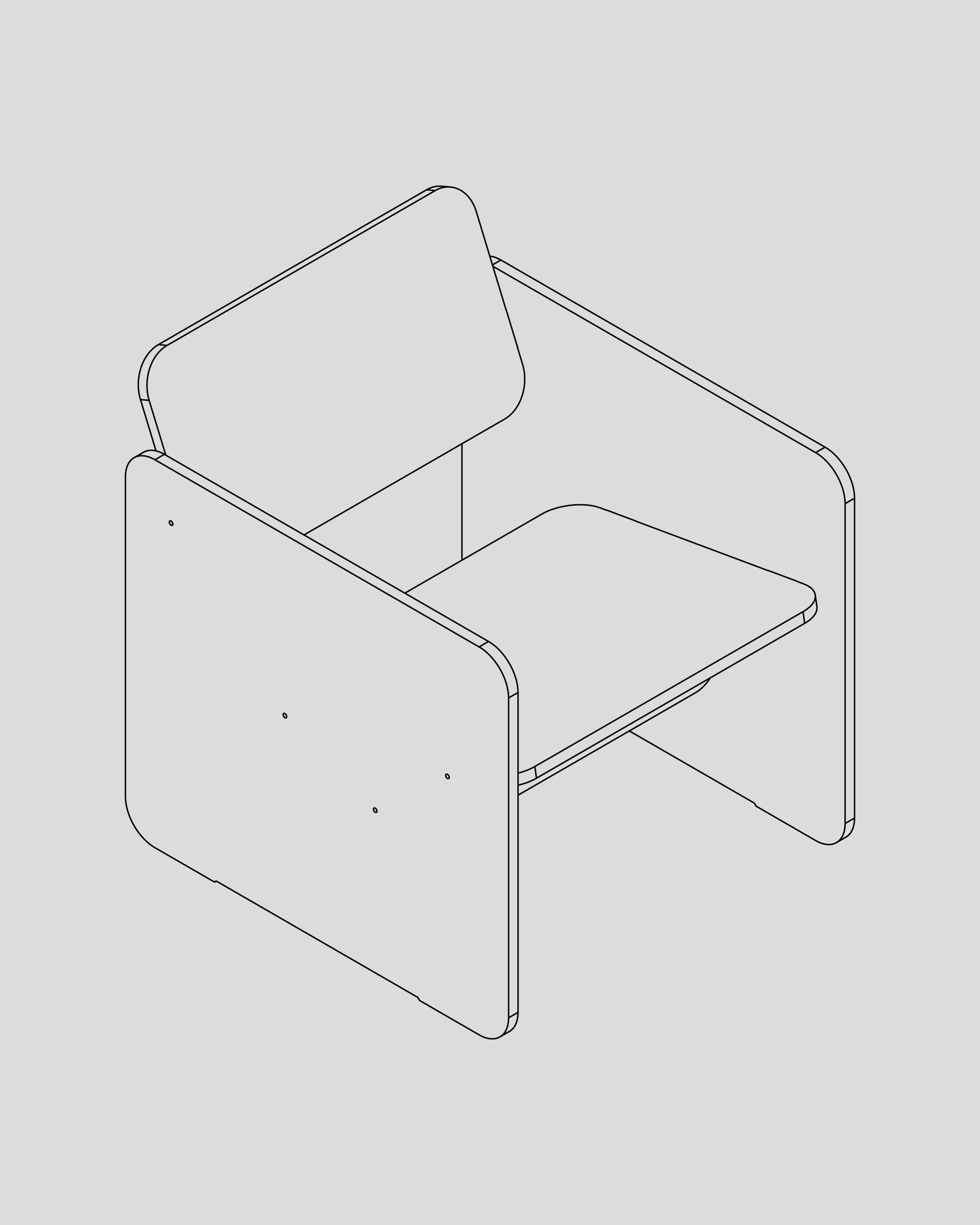

Step 10

Finished
