Frame Sideboard — Assembly guide

Step 1

Insert the nut into the plastic housing. Press firmly to ensure it sits fully inside. Repeat for all.

Step 2

Insert the plastic housing with the nut inside, into the pill-shaped slot. Ensure it’s oriented as shown and no part is protruding. Repeat for all.

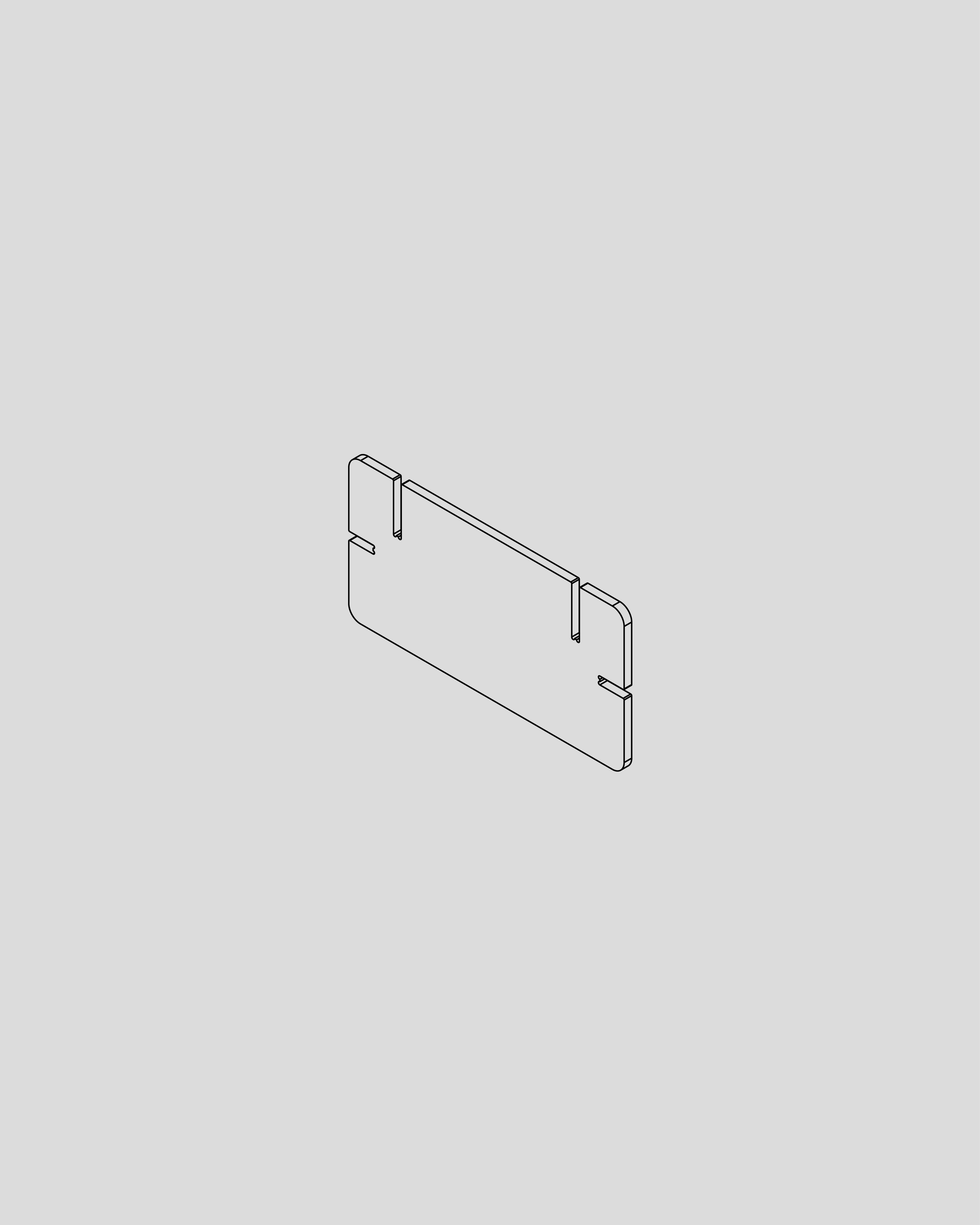

Step 3

Place the bottom shelf on a flat and soft surface with the two slots pointing upward.

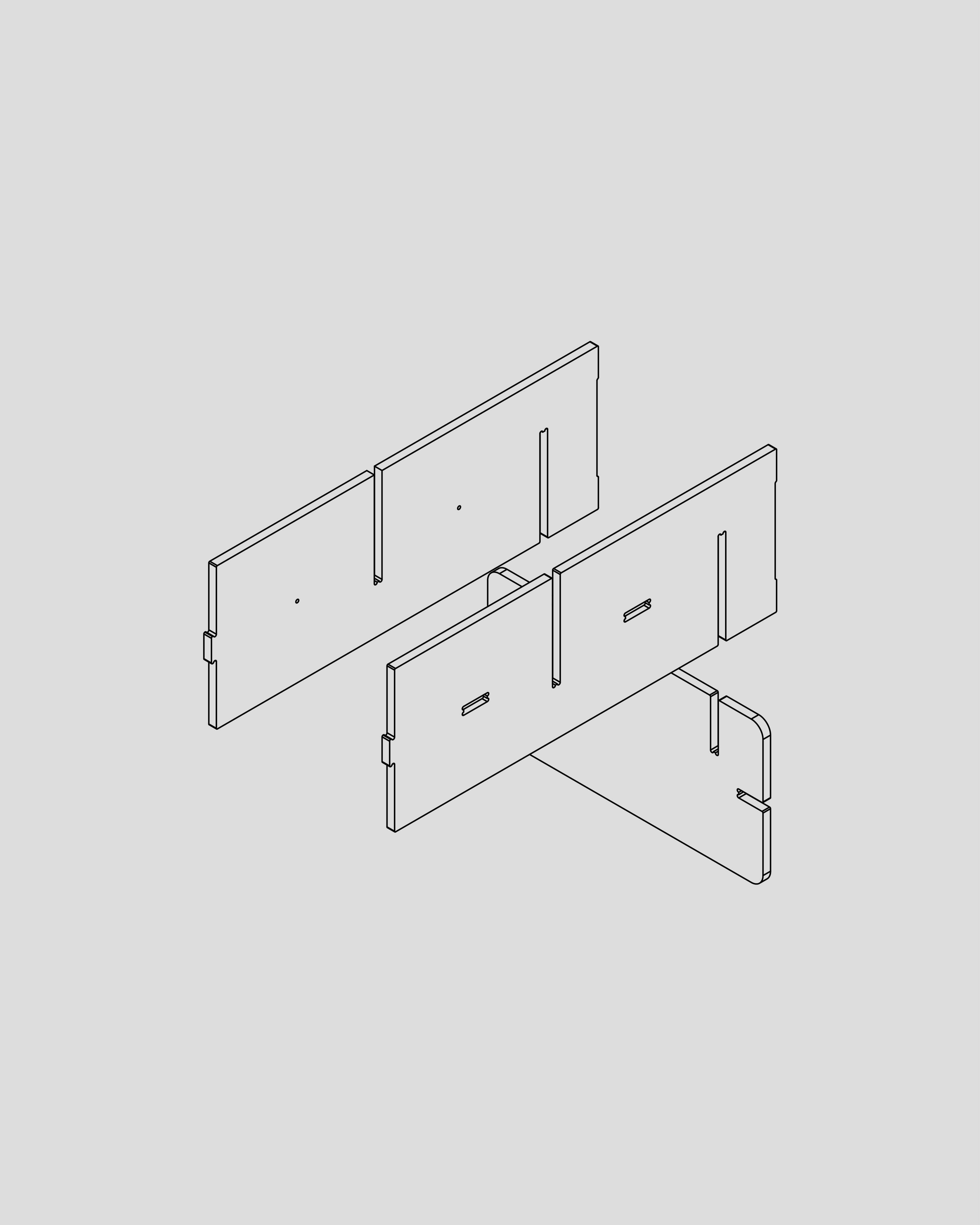

Step 4

Fit the two legs into their corresponding slots with the pockets facing outward.

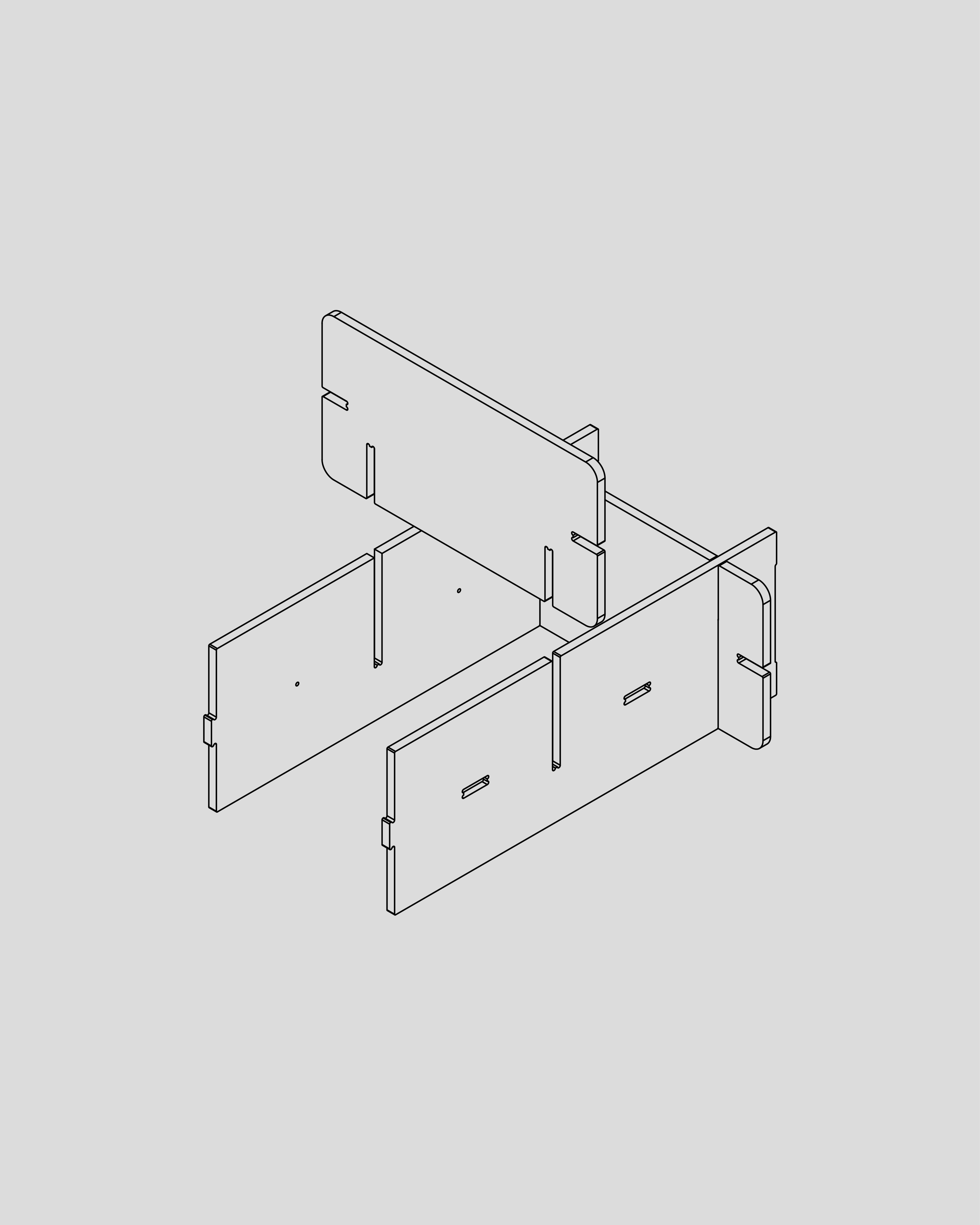

Step 5

Fit the middle shelf into its corresponding slots.

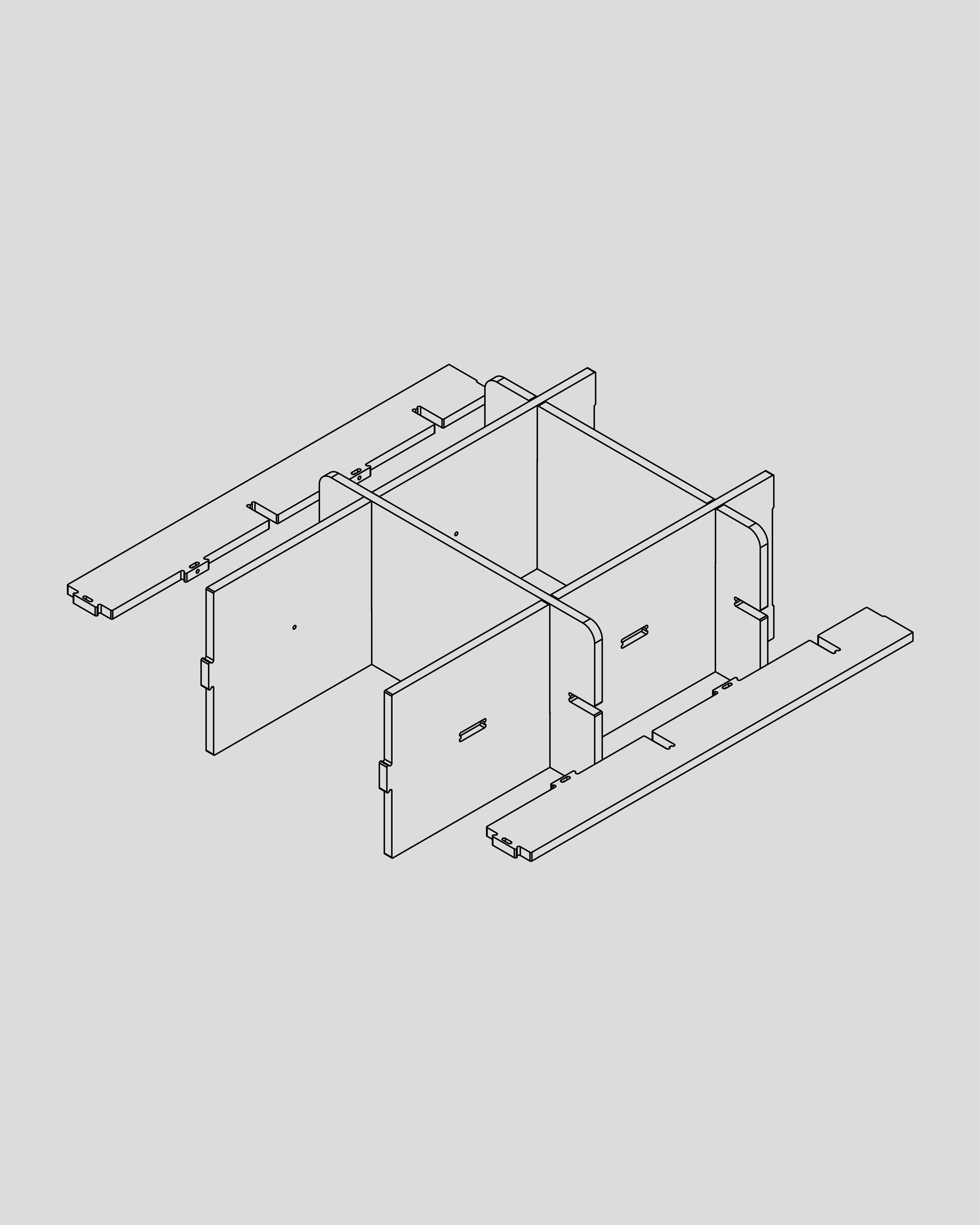

Step 6

Fit the two side pieces into their corresponding slots and pockets. Make sure they are fully inserted. Take your time.

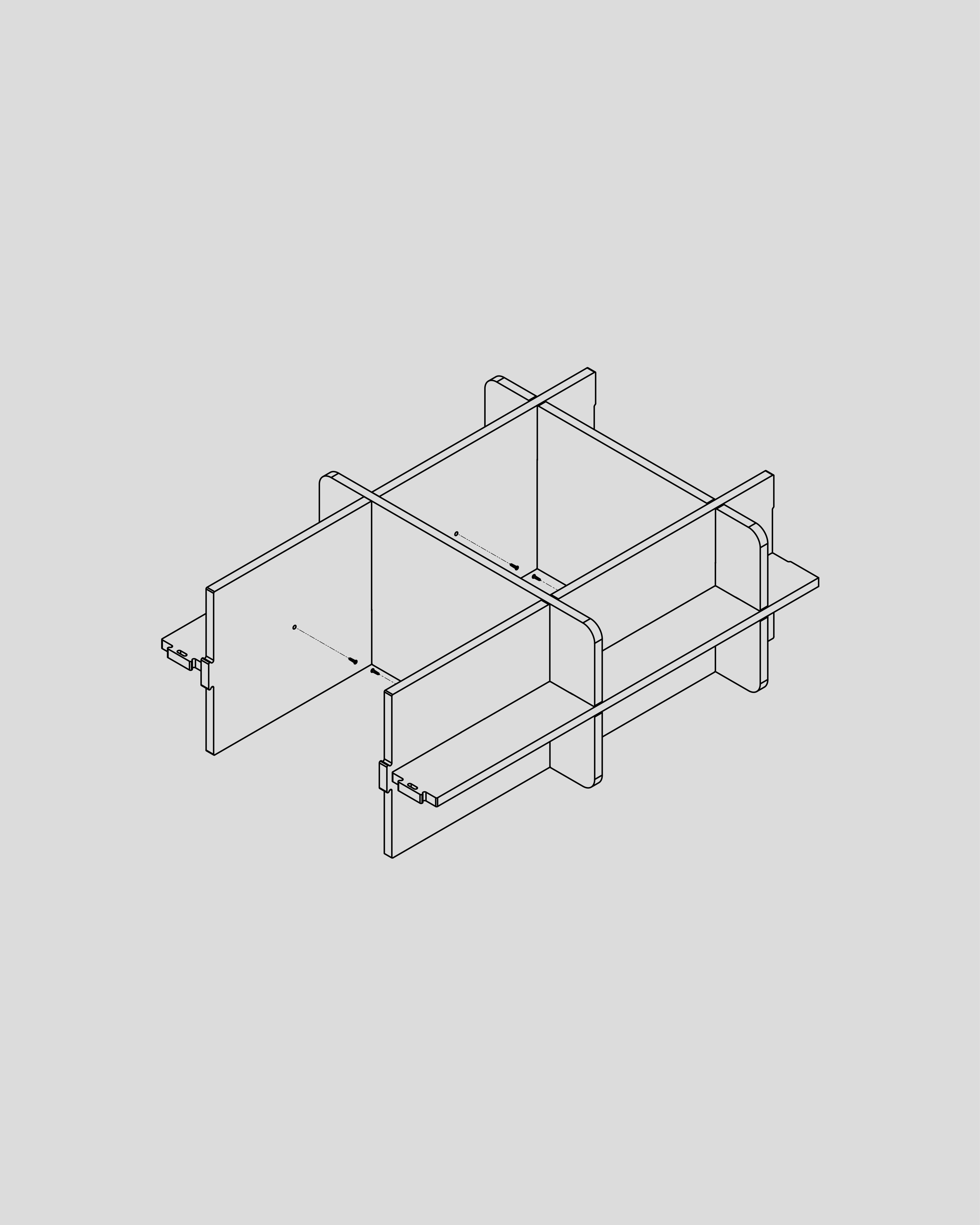

Step 7

Using a non-electric flat-head screwdriver, drive in the four screws to secure the side pieces to the legs. Stop when the head sits flush with the surface; avoid over-tightening.

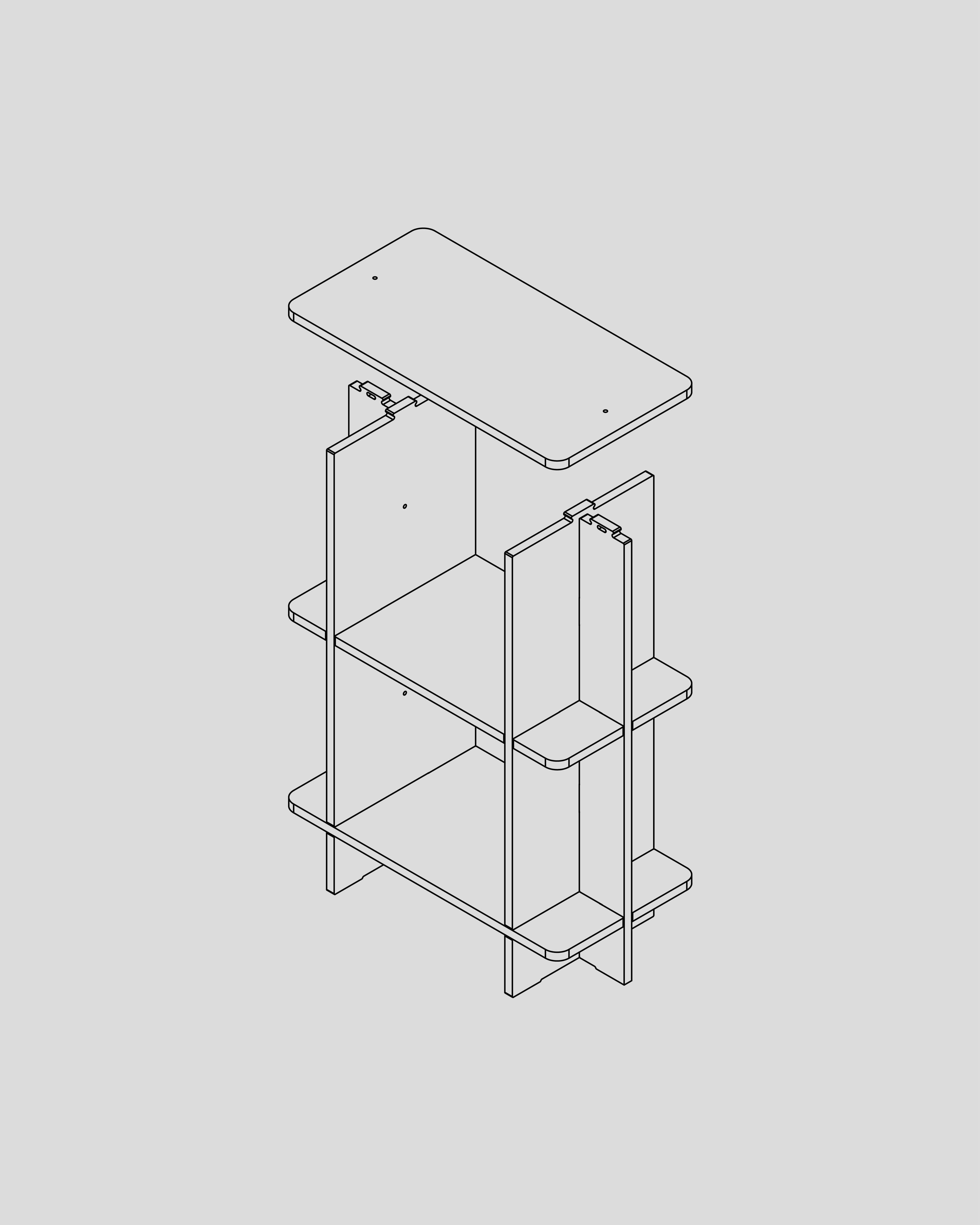

Step 8

Set the shelf upright. Lower the top onto the legs and guide the tabs into their pockets. Take your time.

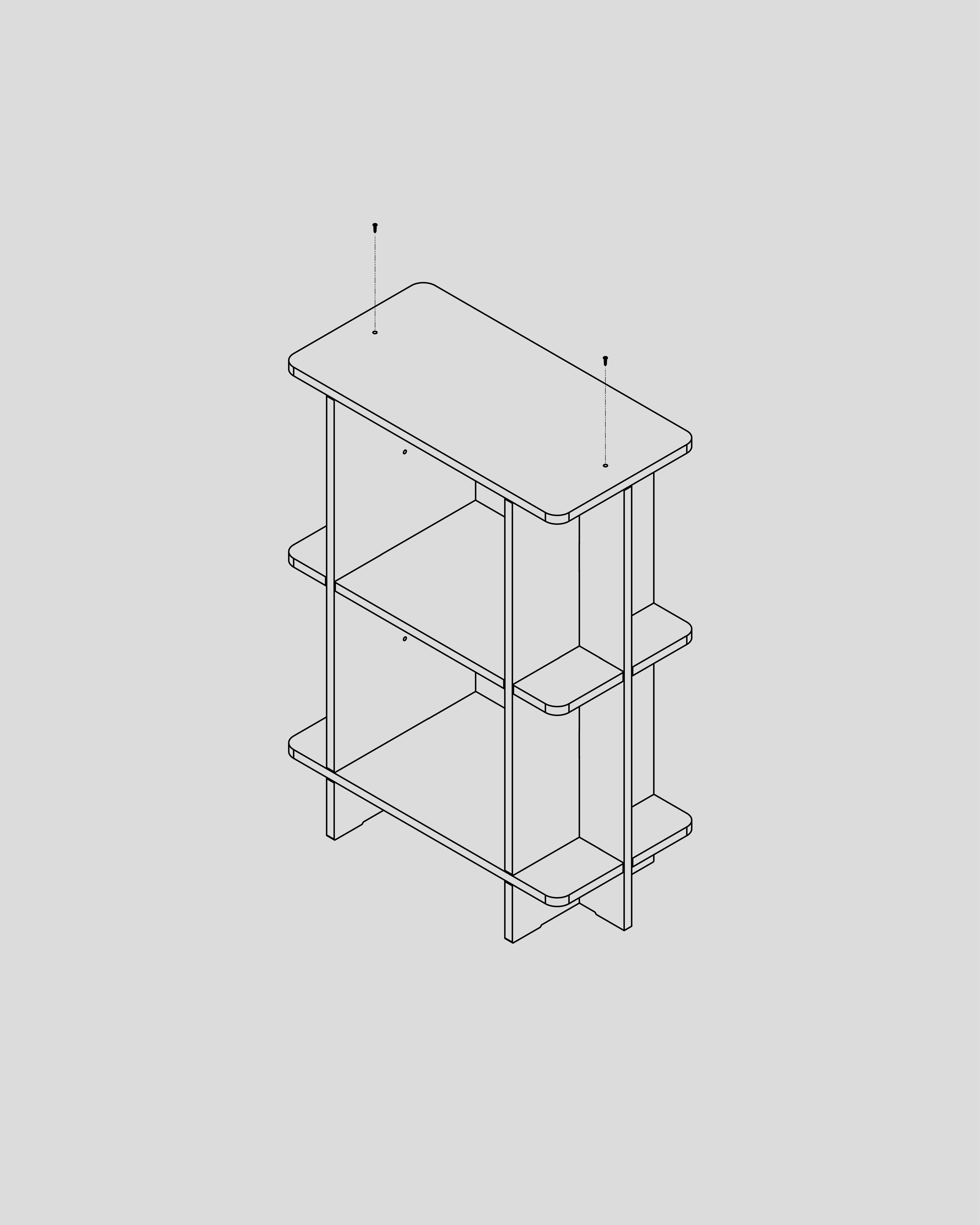

Step 9

Using a non-electric flat-head screwdriver, drive in the remaining two screws to secure the top to the legs. Stop when the head sits flush with the surface; avoid over-tightening.

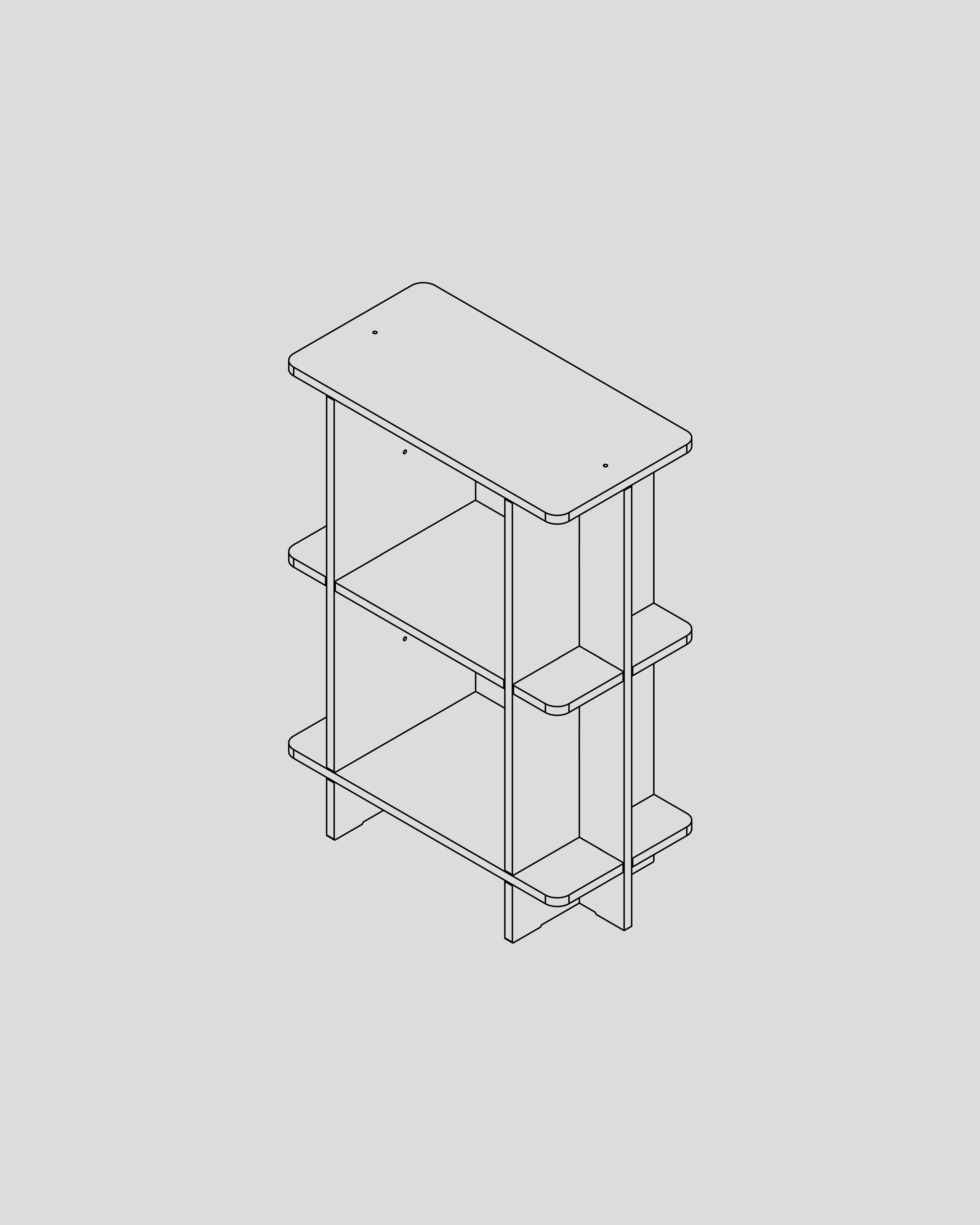

Step 10

Finished
