Frame Desk — Assembly guide
Step 1

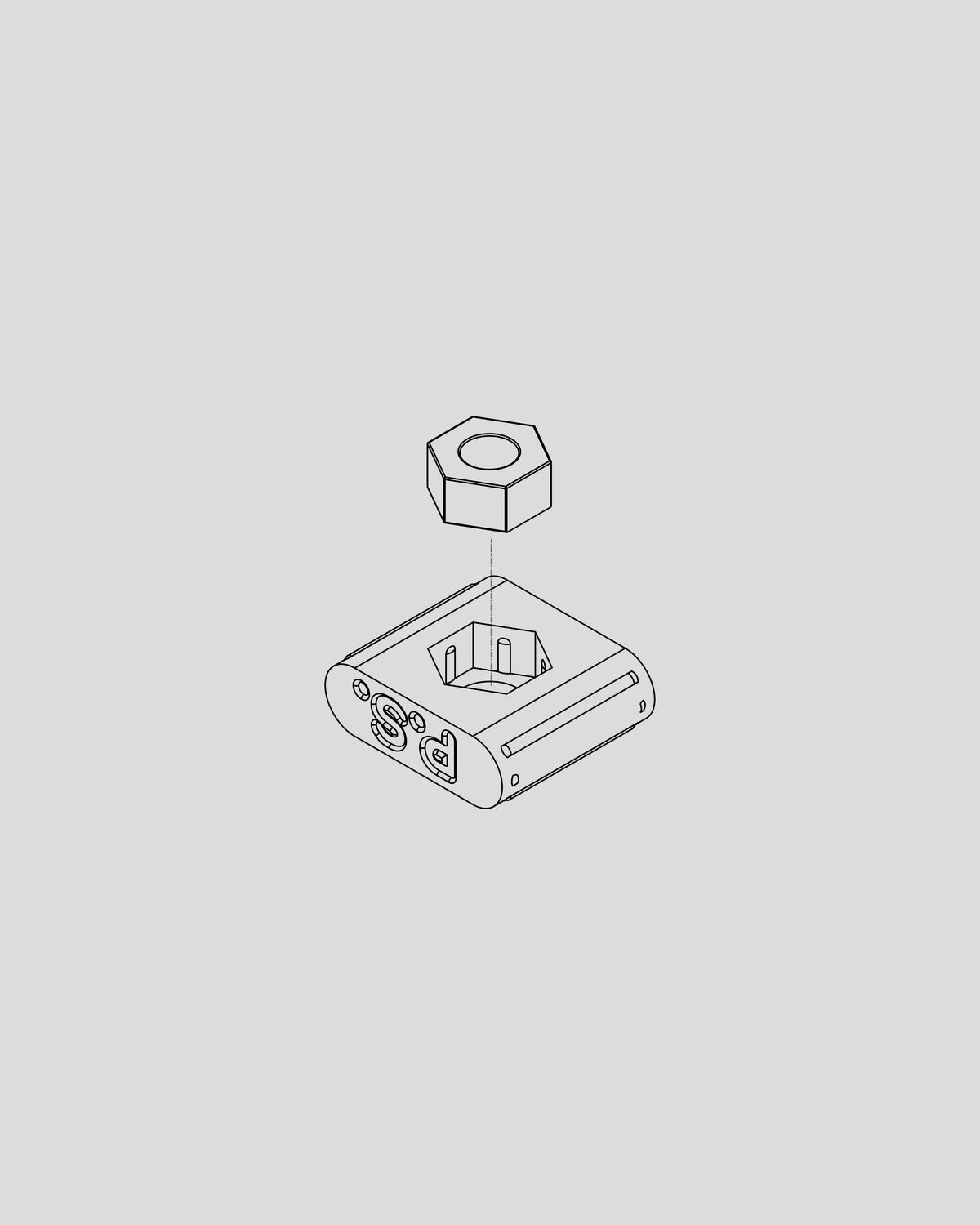

Insert a nut fully into each supplied holder. Prepare 11 sets.
Step 2

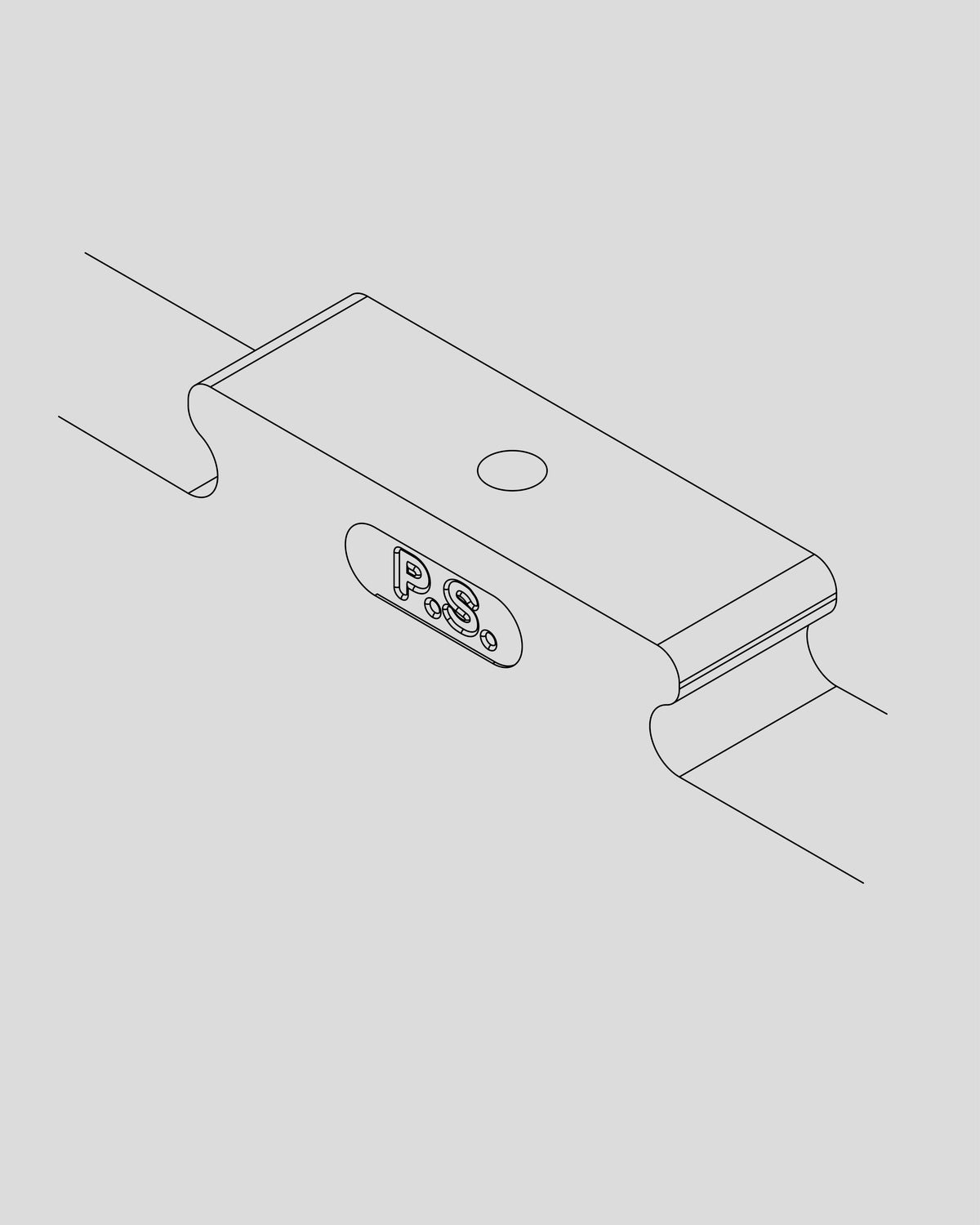

Insert each prepared holder into its matching slot with the logo facing as shown. Make sure the holder sits flush.
Step 3

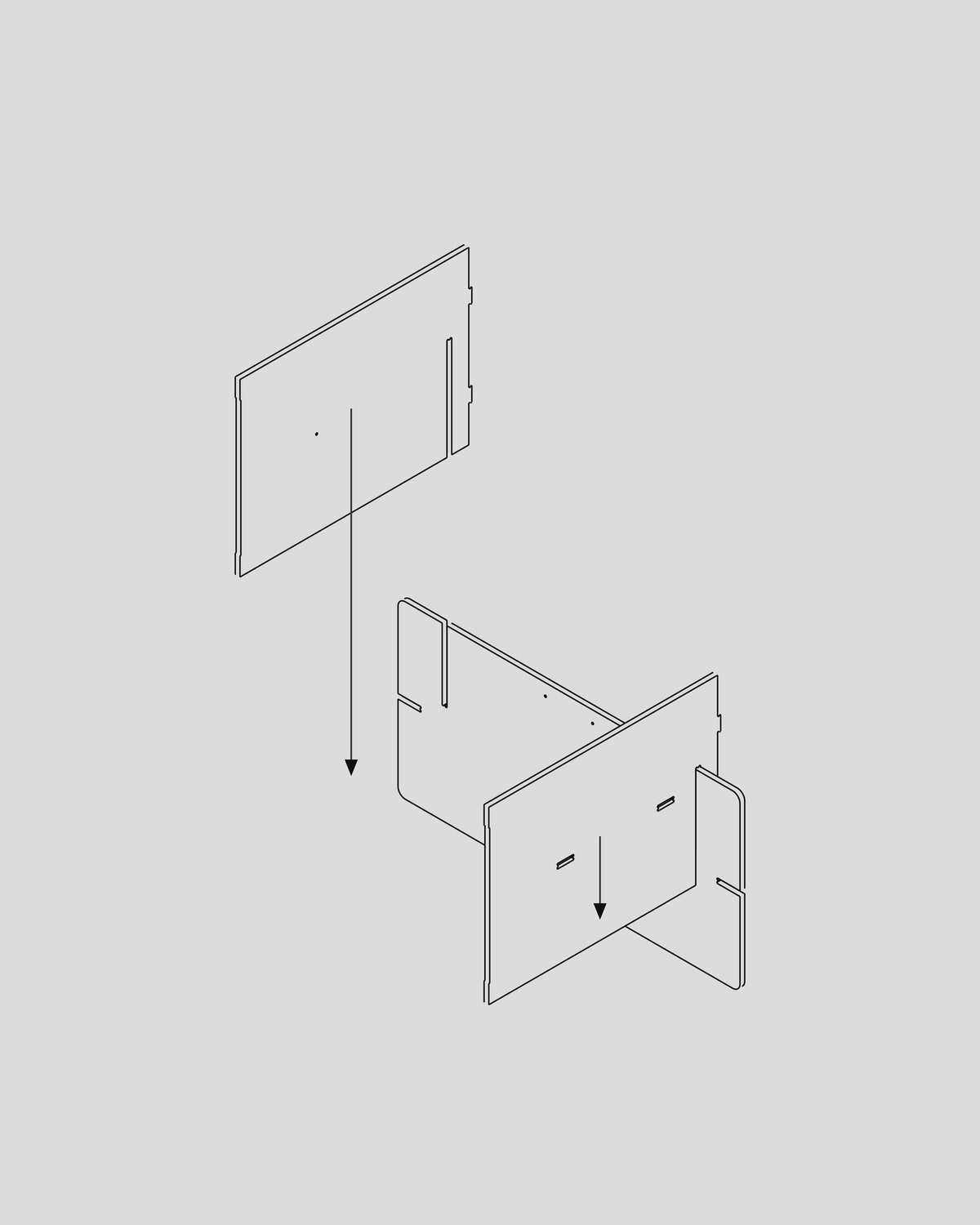

Before fitting the left leg and right leg, make sure their pockets face outwards. Stand the shelf on its long edge on a soft surface, with the slots facing upwards. Have someone hold it steady while you lower the two legs into their slots, one at a time. Keep the legs in place.
Step 4

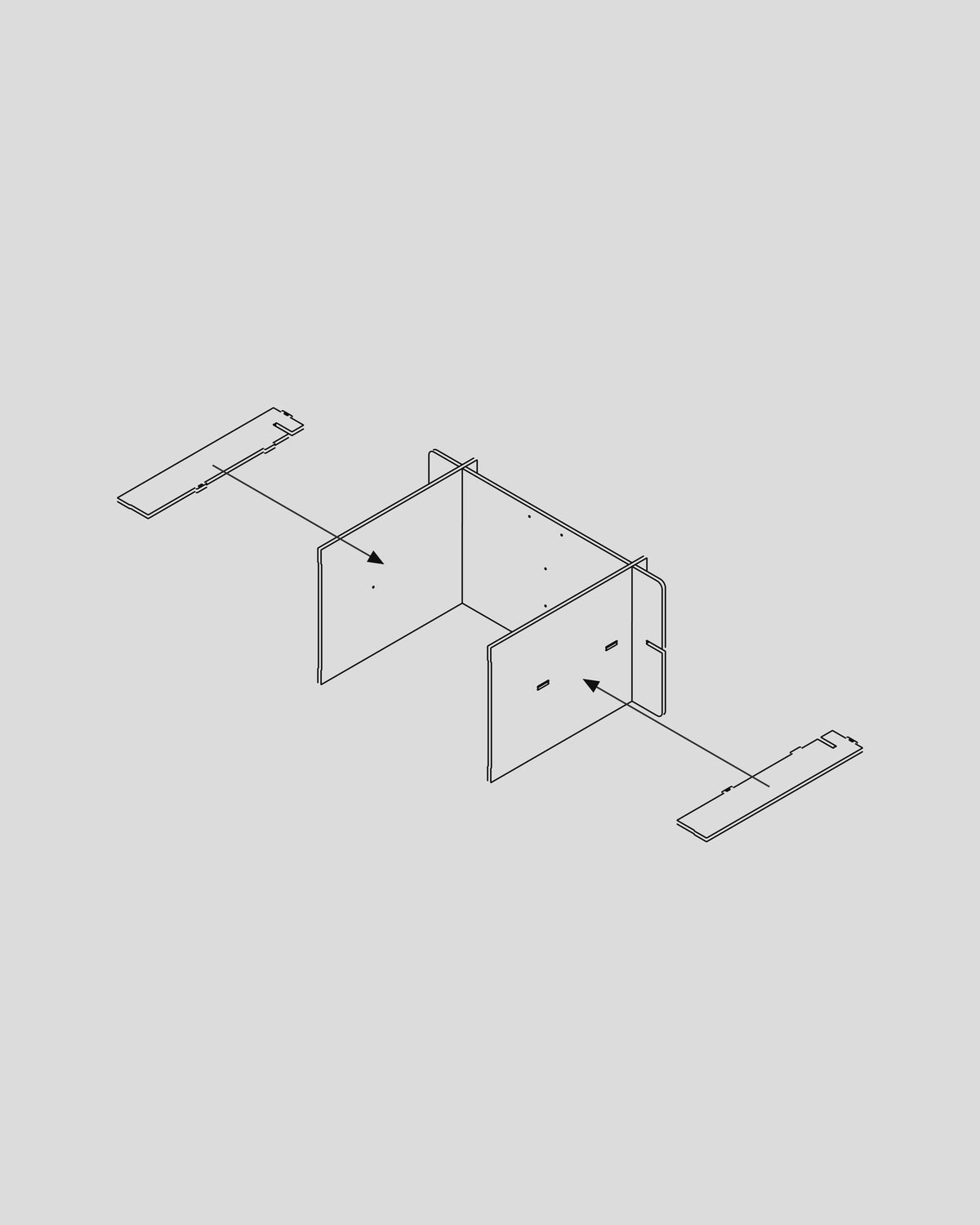

Keep the shelf on the same edge and have someone hold it steady. Slide the two side pieces into the slots and pockets from opposite sides, one at a time. Keep each piece in place until secured.
Step 5

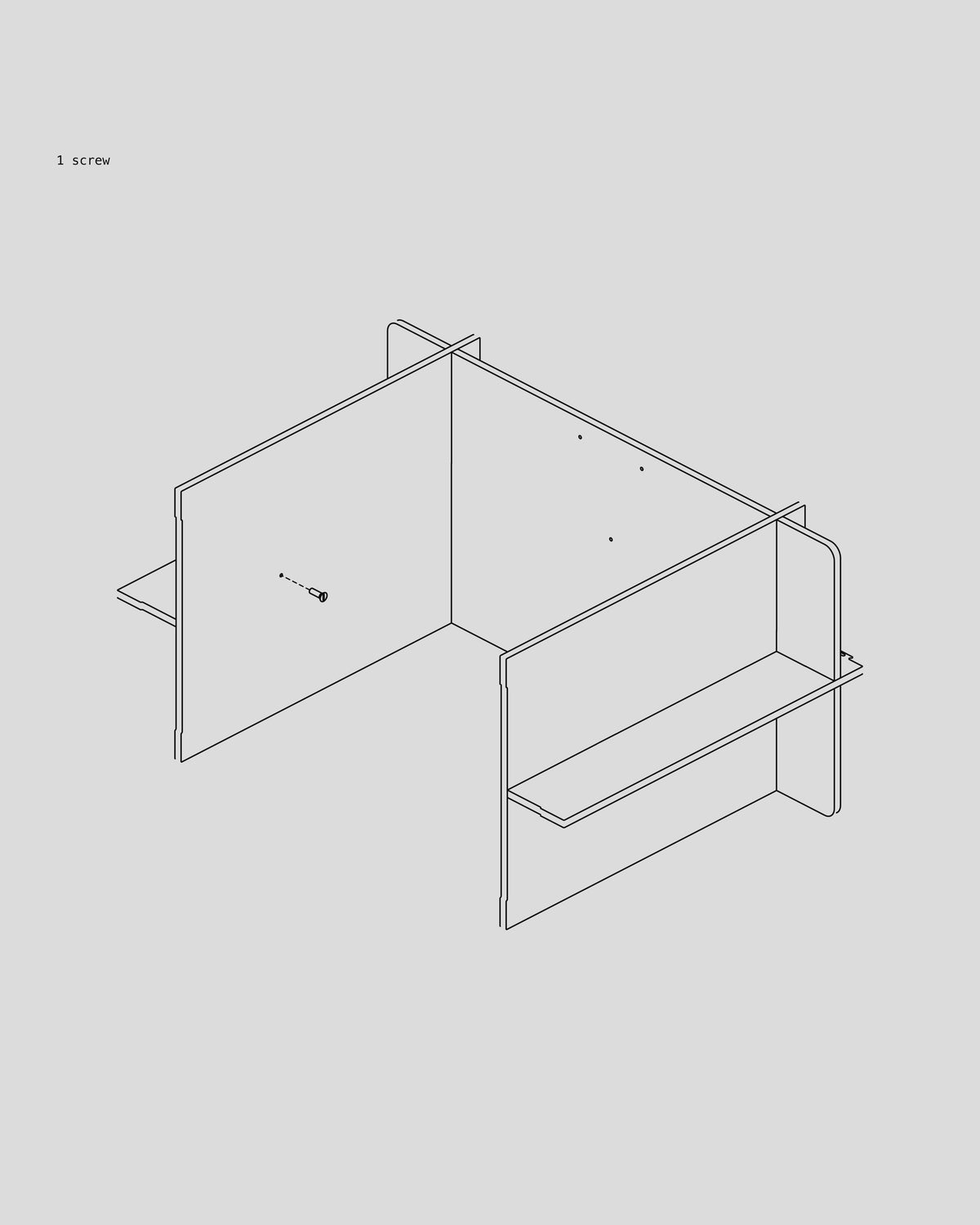

Secure the left side piece to the left leg through the indicated hole using 1 screw. Follow the dashed lines.
Step 6

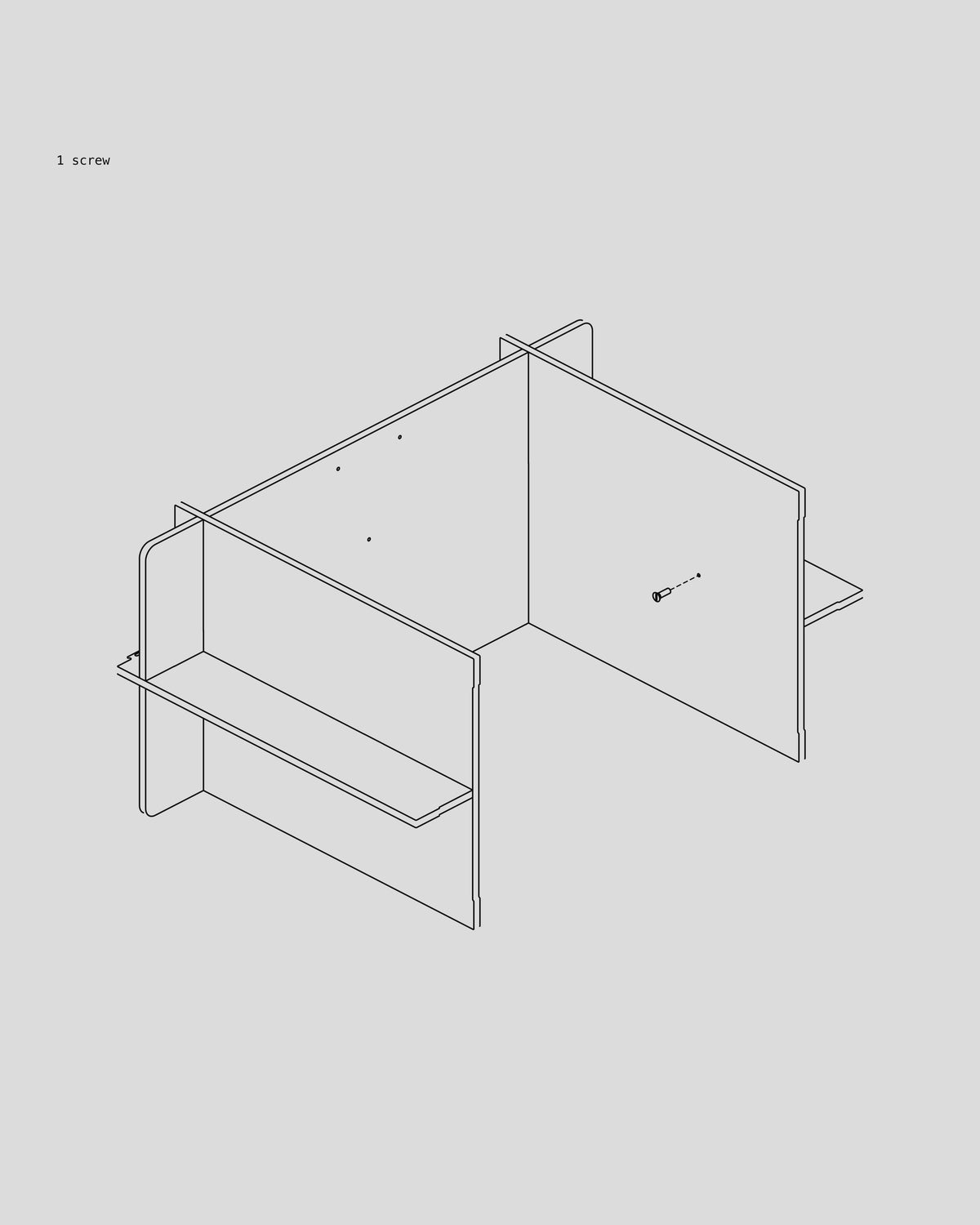

Secure the right side piece to the right leg through the indicated hole using 1 screw. Follow the dashed lines.
Step 7

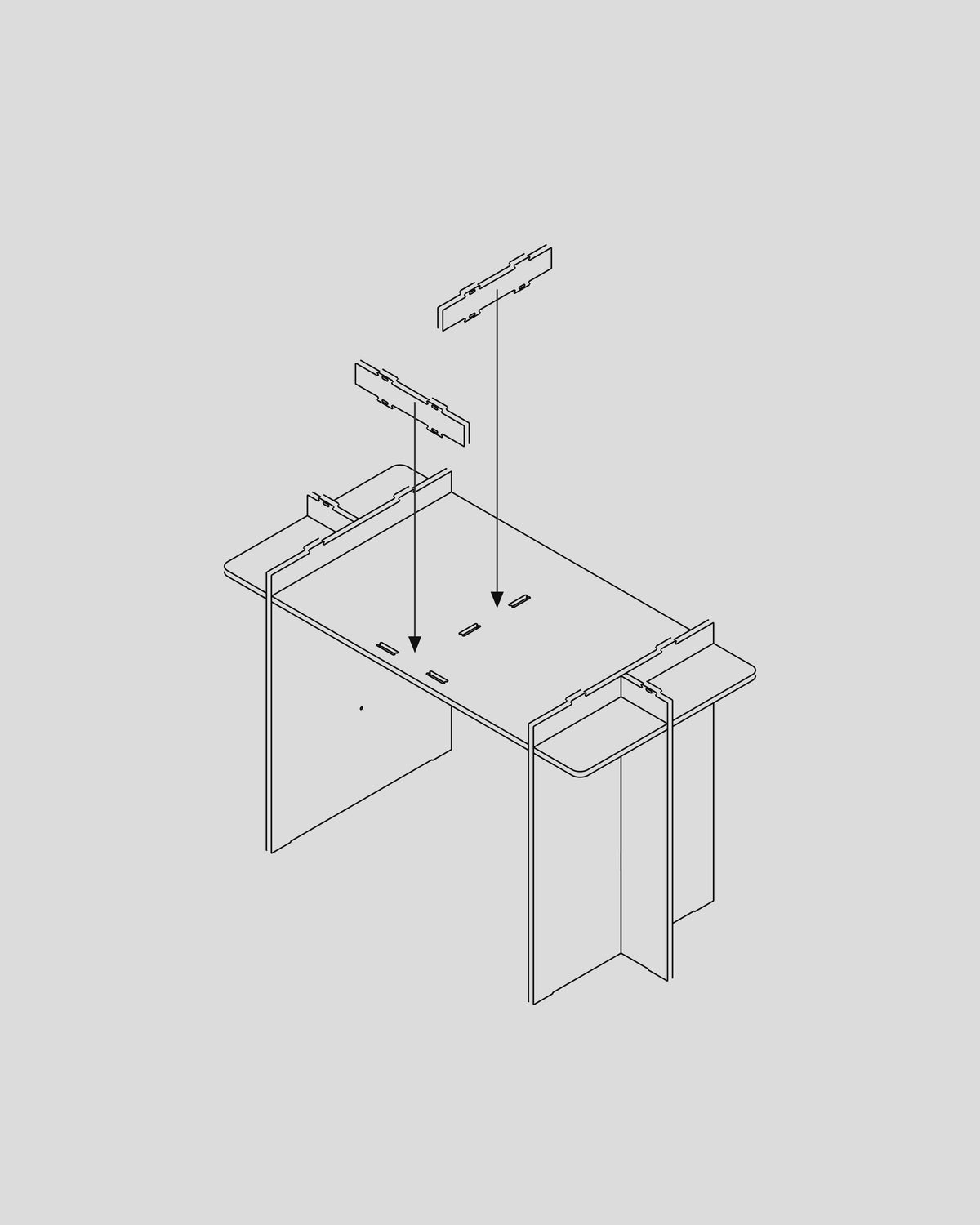

With help, turn the frame upright on the floor, keeping the parts in place. Lower both support beams into the shelf pockets, one at a time. Keep them in place until secured from underneath.
Step 8

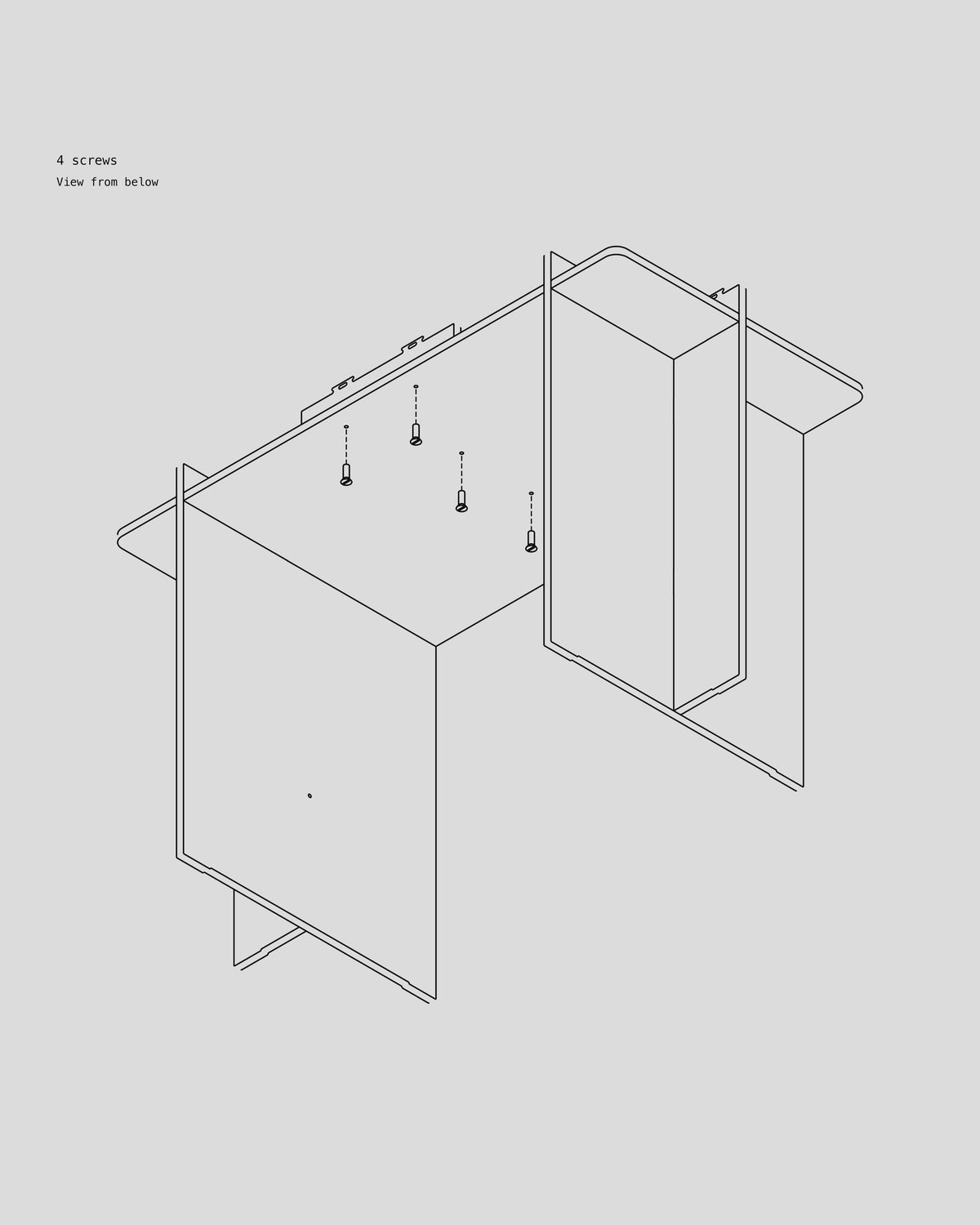

Secure both support beams to the shelf from underneath using 4 screws. Follow the dashed lines.
Step 9

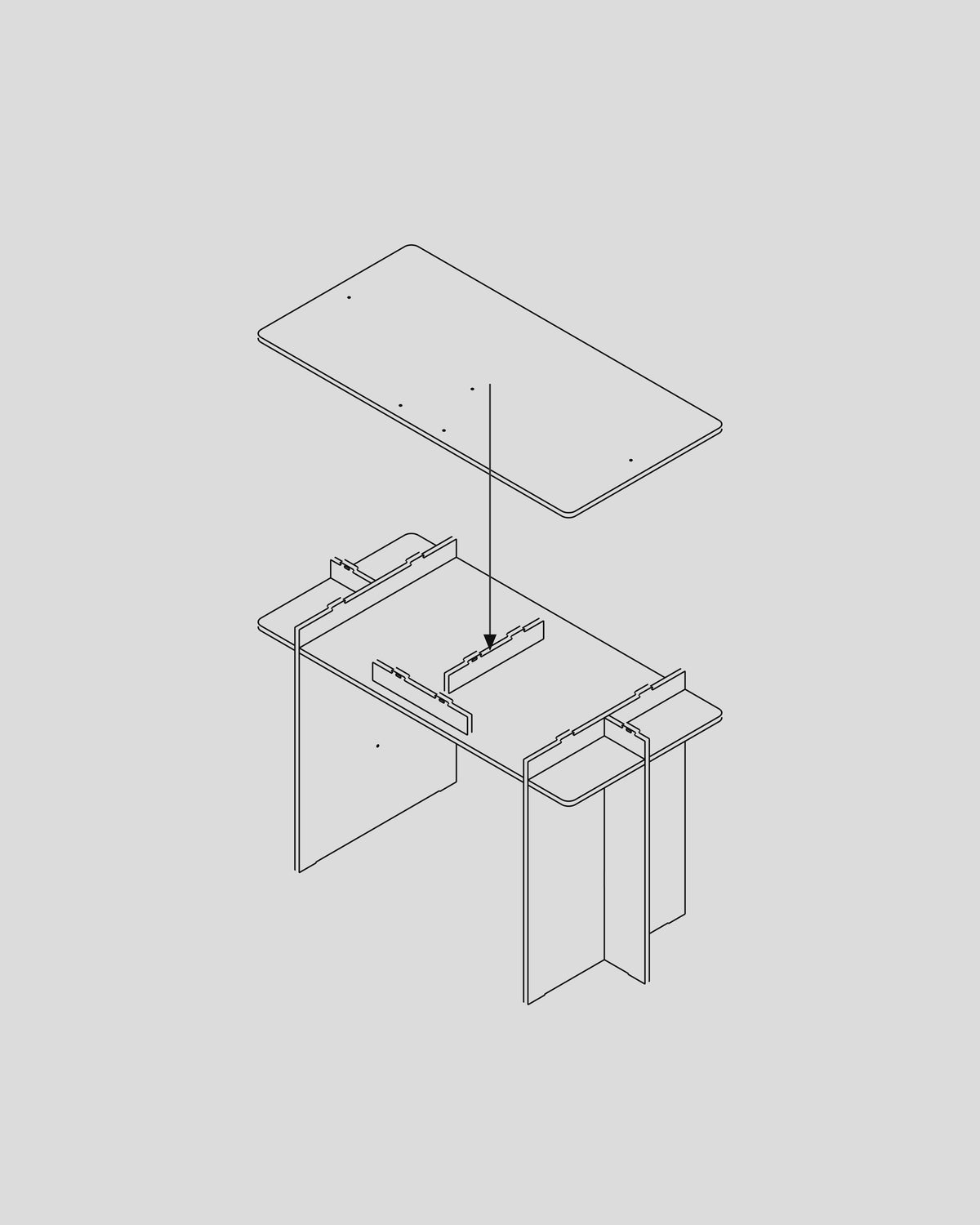

Before fitting the table top, make sure its pockets face downwards. Keep the frame upright. With help, lower the table top onto the legs, side pieces and support beams, guiding the tabs into their pockets. Keep the top level until all parts are fully inserted.
Step 10

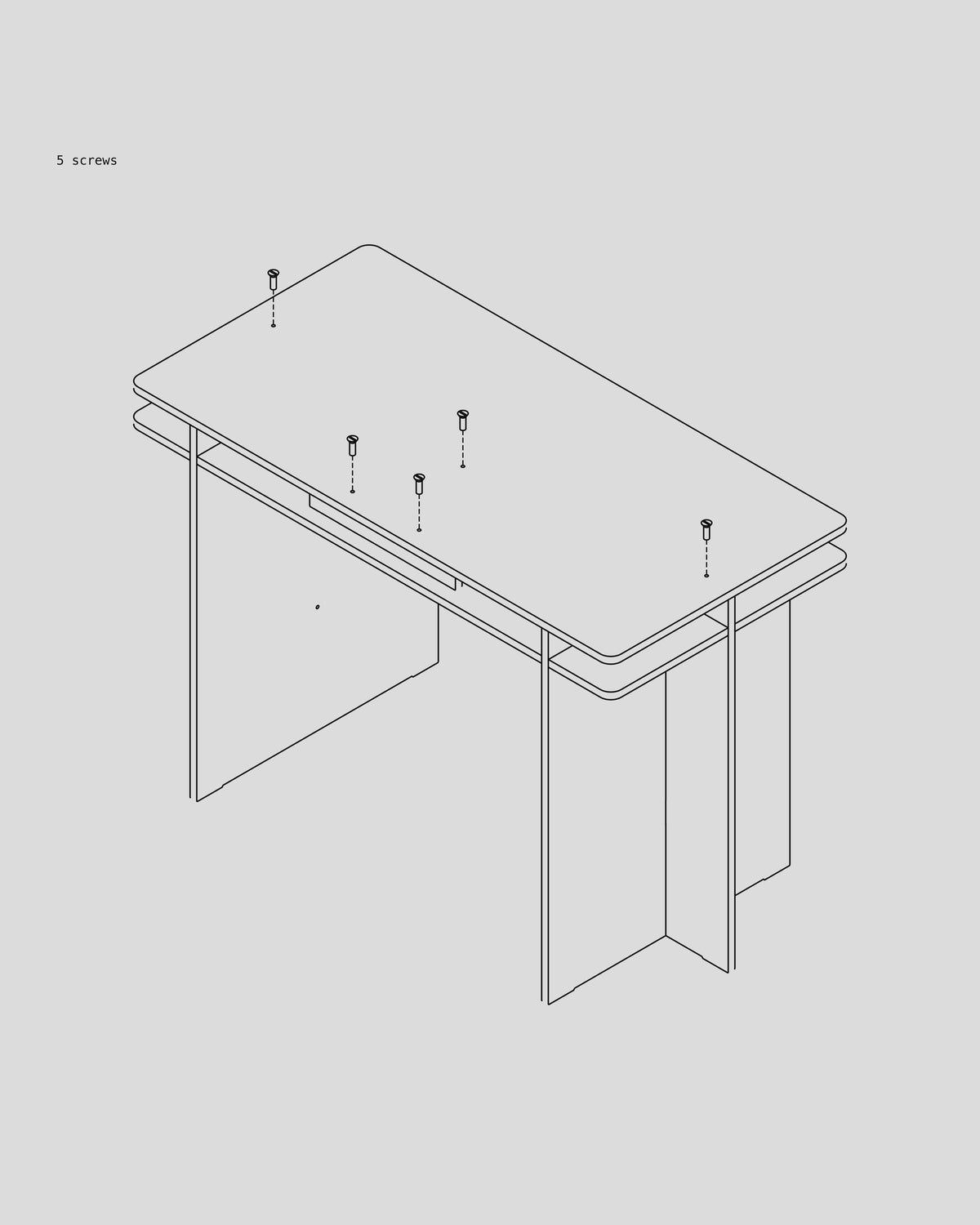

Secure the table top from above using 5 screws. Follow the dashed lines.
Step 11

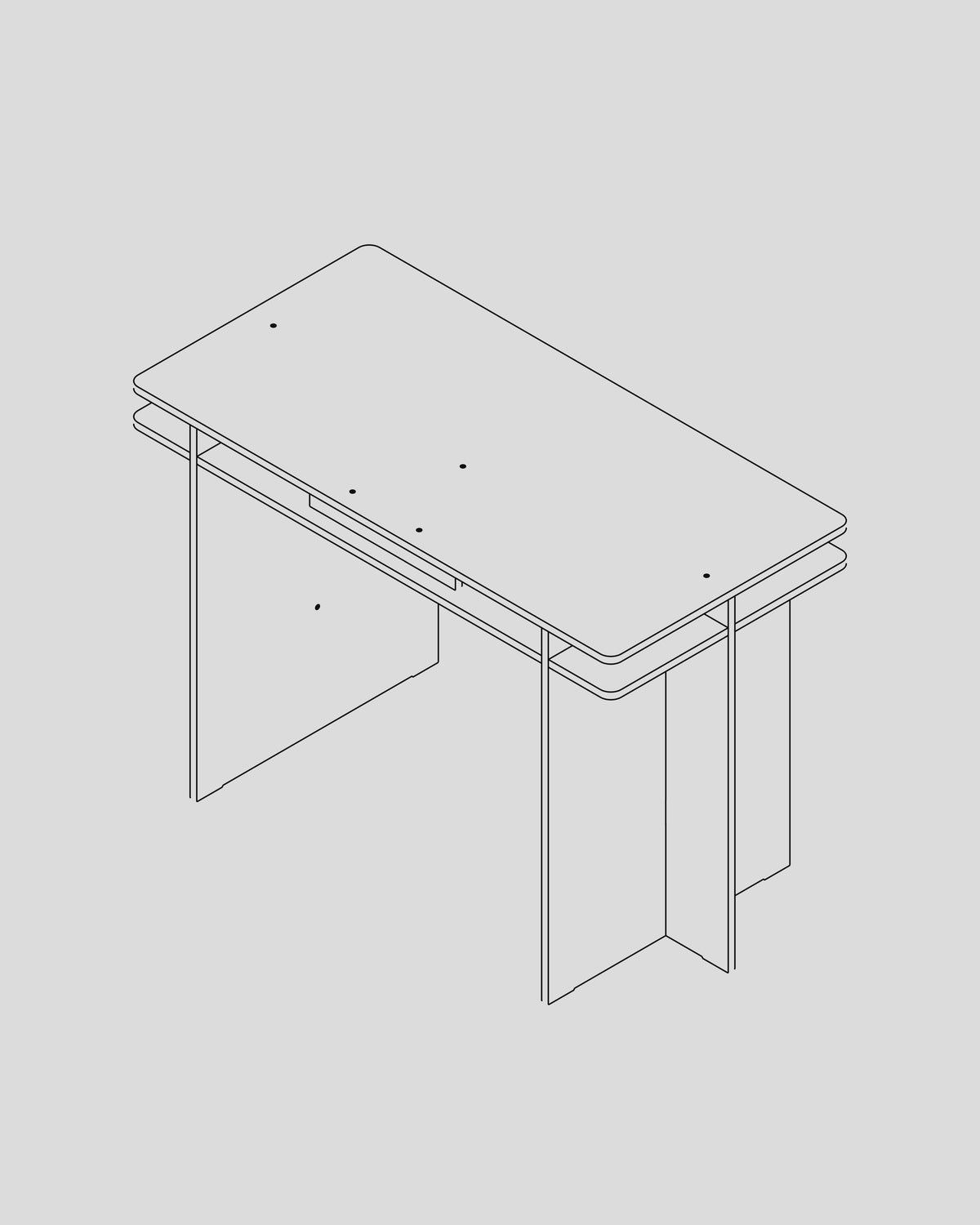

Your Frame Desk is now assembled. Check that all parts are fully inserted, every screw sits flush and the desk stands evenly.
