Frame Cabinet — Assembly guide
Step 1
Insert the nut into the plastic housing. Press firmly to ensure it sits fully inside. Repeat for all.
Step 2
Insert the plastic housing with the nut inside, into the pill-shaped slot. Ensure it’s oriented as shown and no part is protruding. Repeat for all.

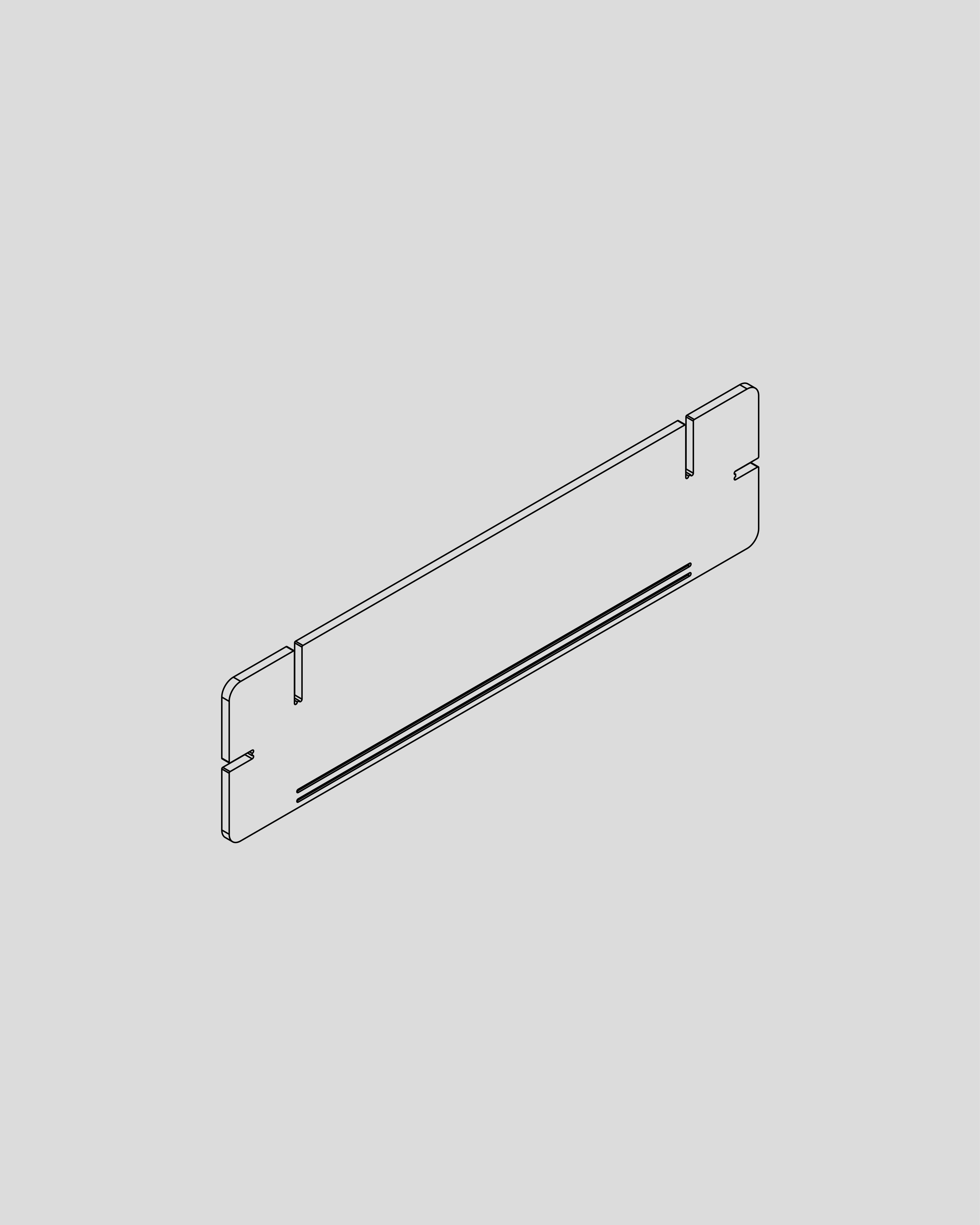

Step 3
Place the bottom shelf on a flat and soft surface with the two slots pointing upward and the grooves towards you.
Step 4
Fit the two legs into their corresponding slots with the pockets facing outward.
Step 5
Fit the two side pieces into their corresponding slots and pockets. Make sure they are fully inserted. Set the furniture upright ont he floor.

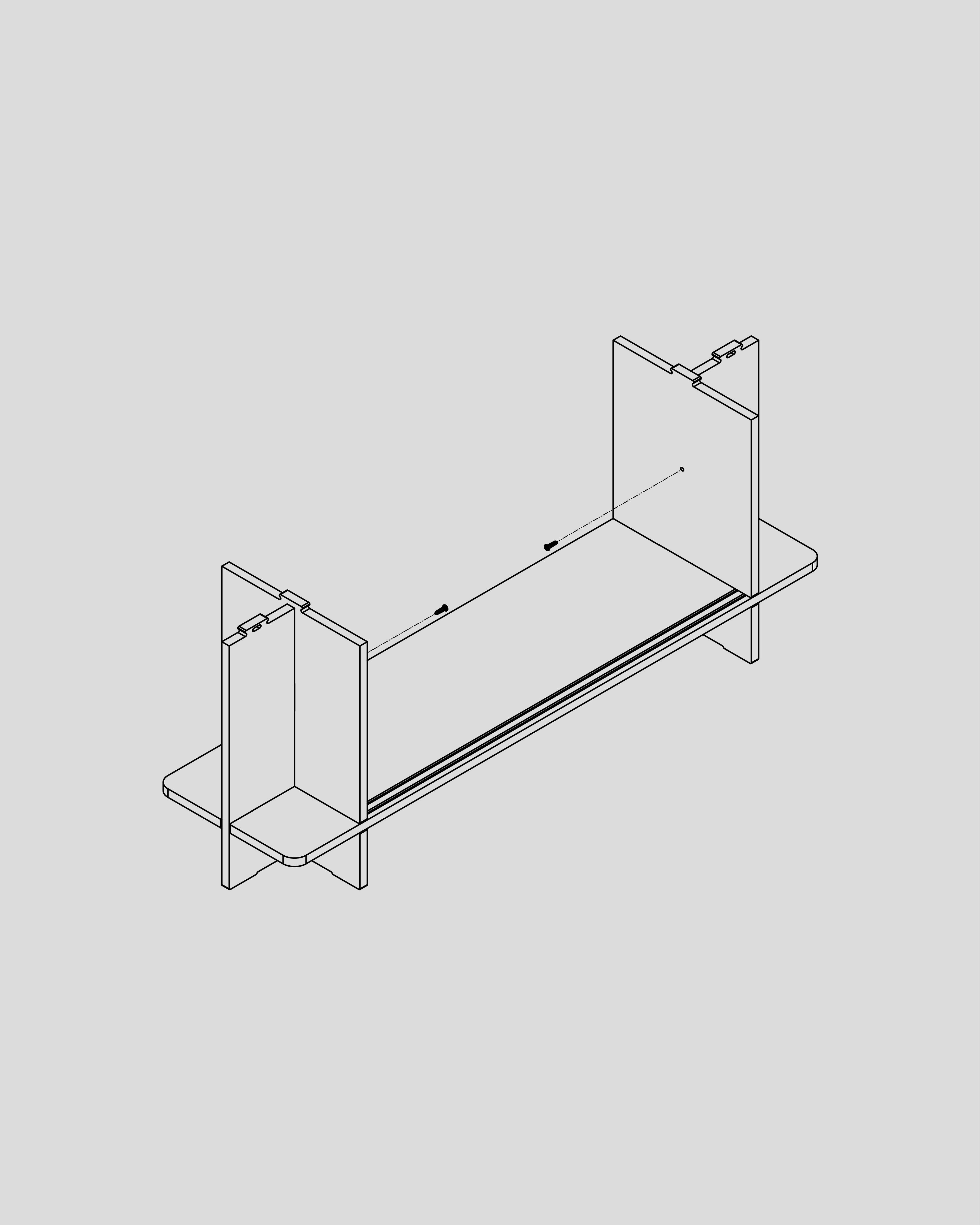

Step 6
Using a non-electric flat-head screwdriver, drive in the two screws to secure the side pieces to the legs. Stop when the head sits flush with the surface; avoid over-tightening.

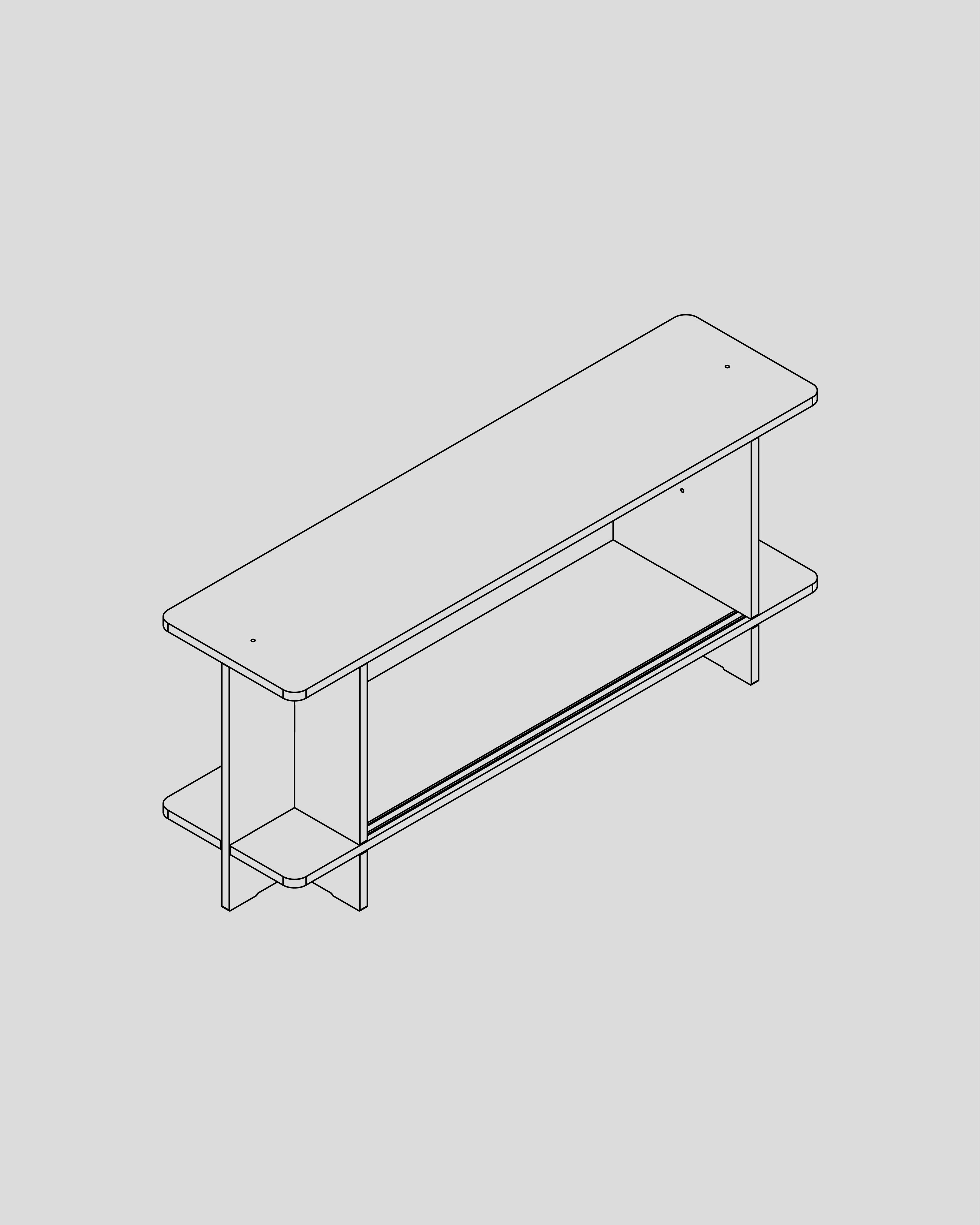

Step 7
Lower the top onto the legs and guide the tabs into their pockets. Make sure grooves on the top shelf faces the grooves on the bottom shelf. Take your time.

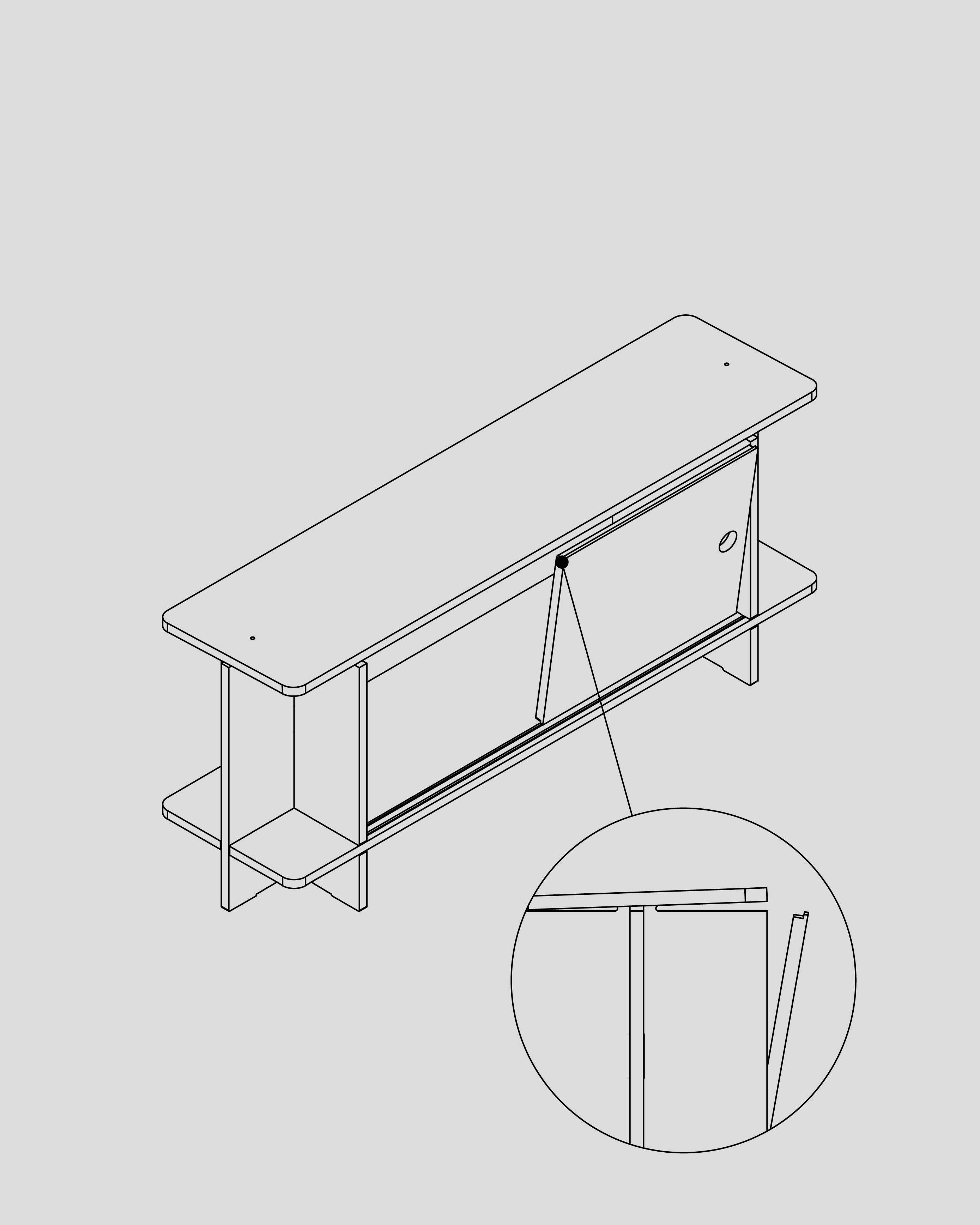

Step 8
Fit one door into the innermost groove on the bottom panel. Tilt the top slightly to create enough clearance to fit the door into the innermost groove on the top panel.

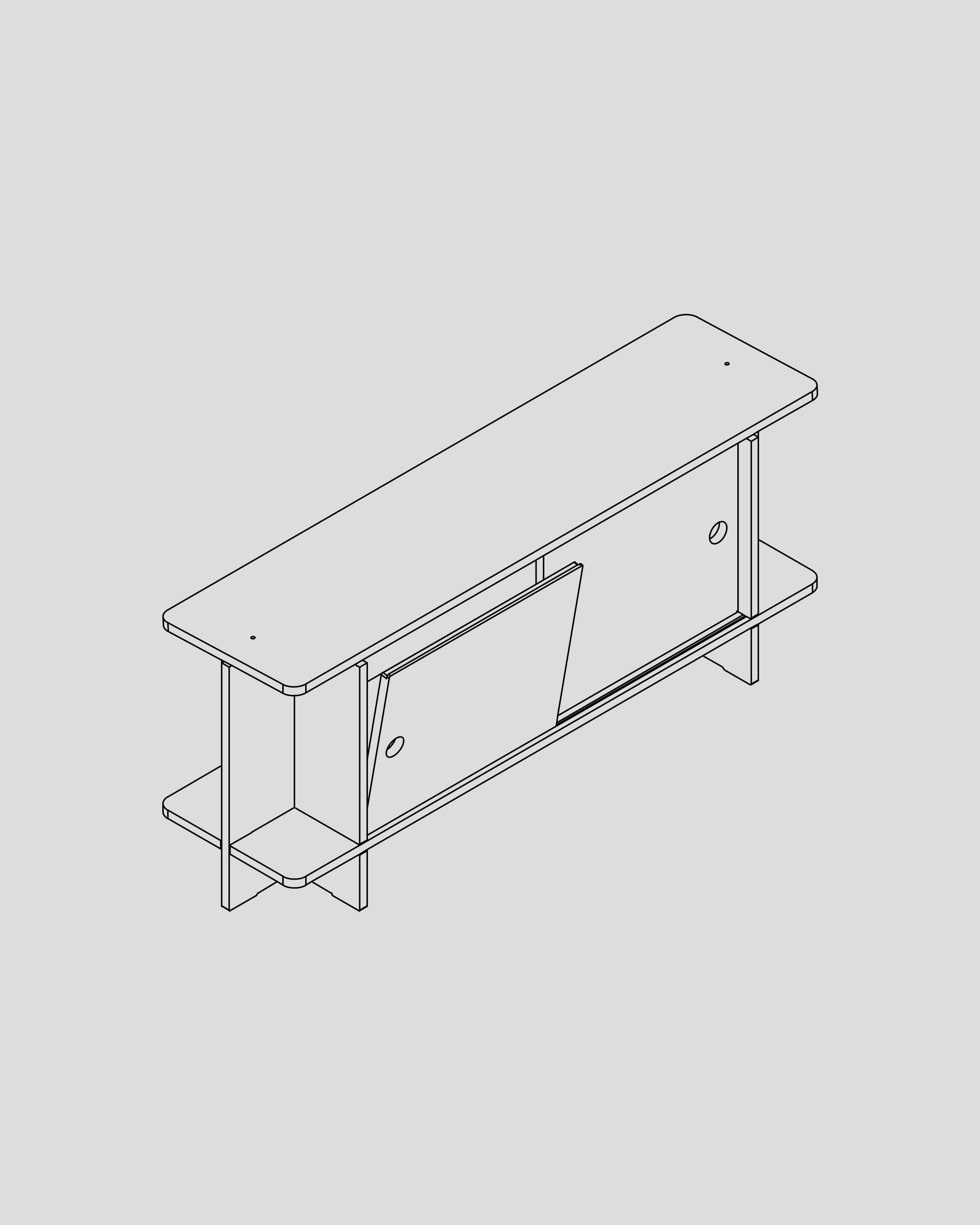

Step 9
Fit the second door into the outermost groove on the bottom panel. Tilt the top slightly, keeping the first door in place, and guide the second door into the outermost groove on the top panel.

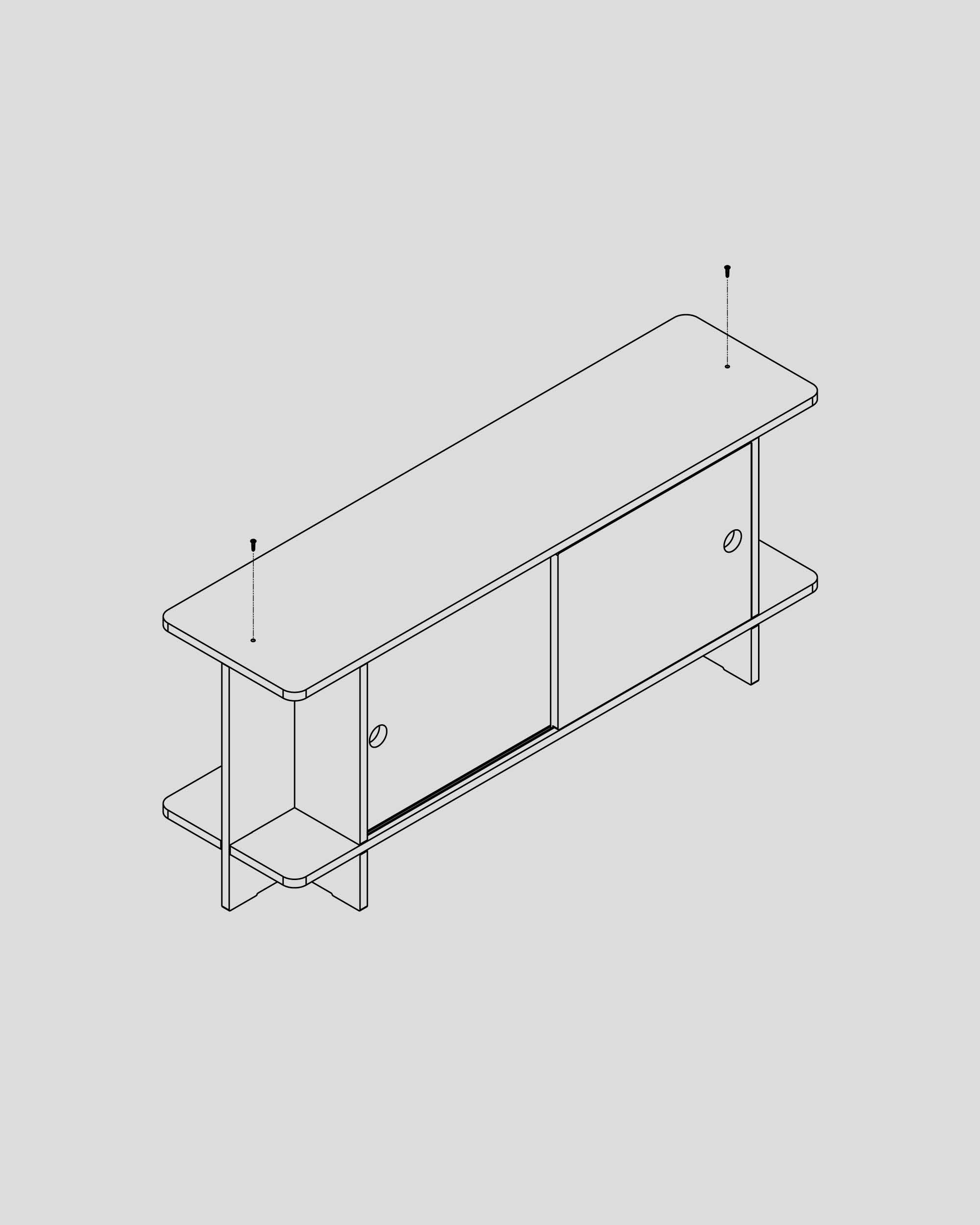

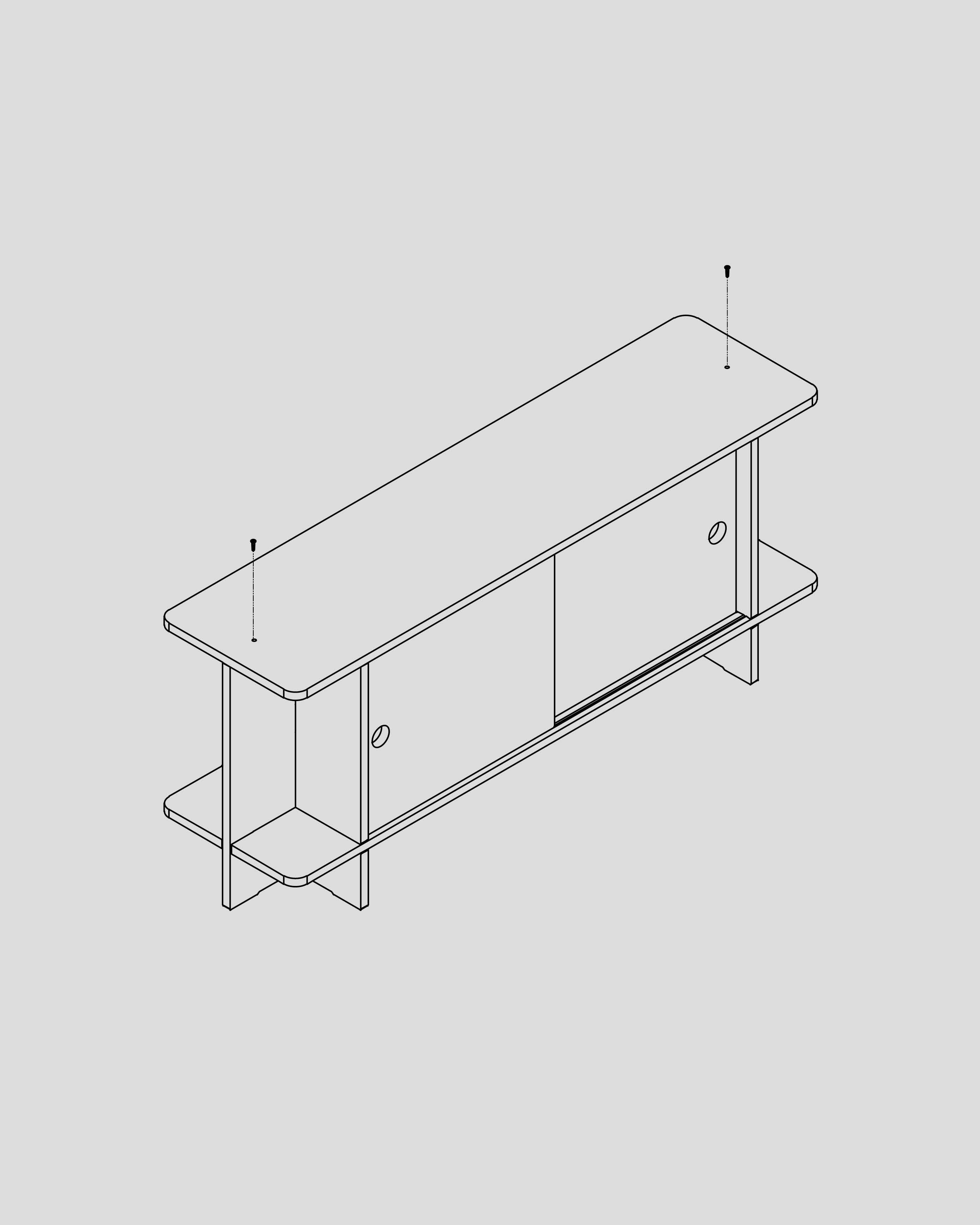

Step 10
Using a non-electric flat-head screwdriver, drive in the remaining two screws to secure the top to the legs. Stop when the head sits flush with the surface; avoid over-tightening.

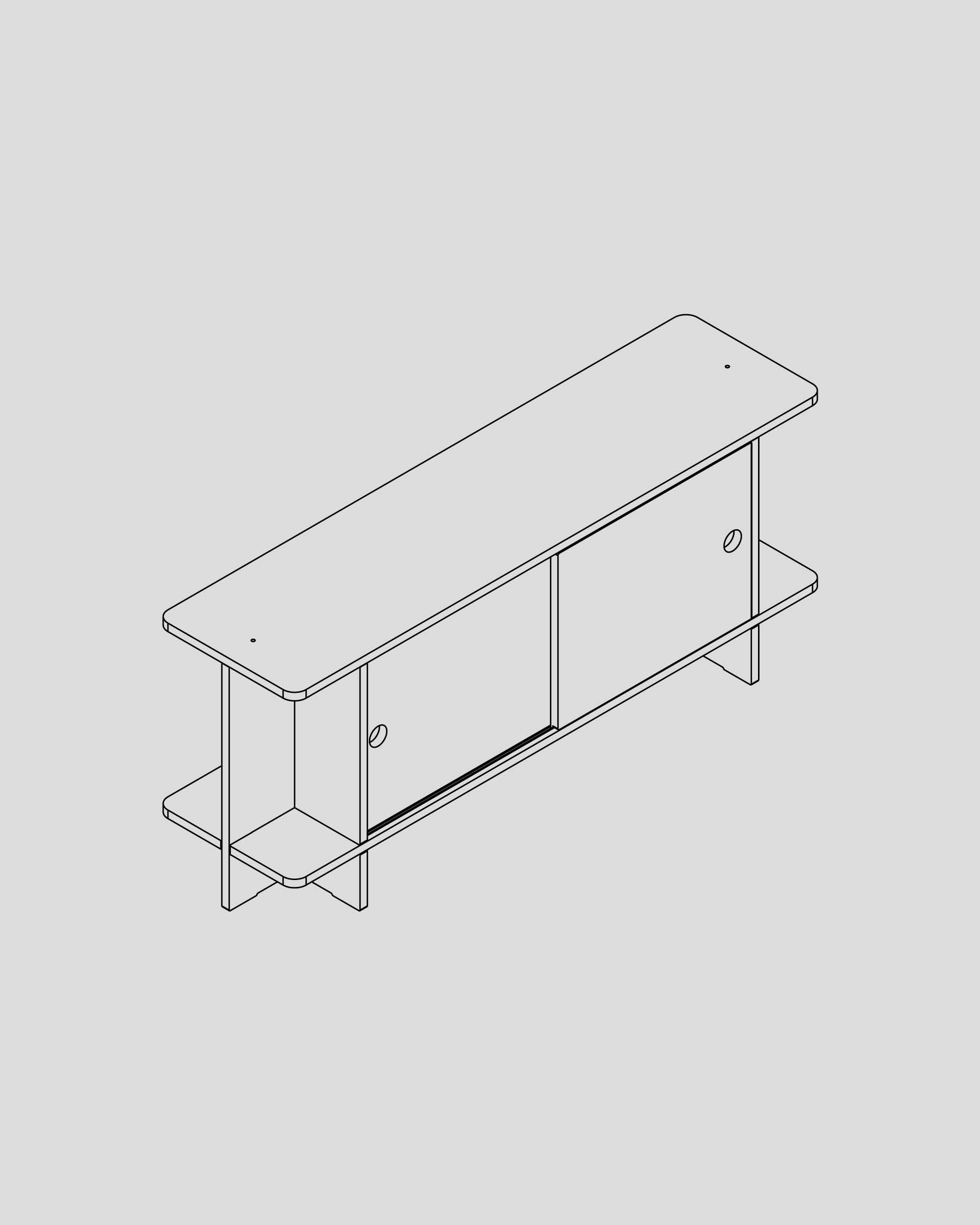

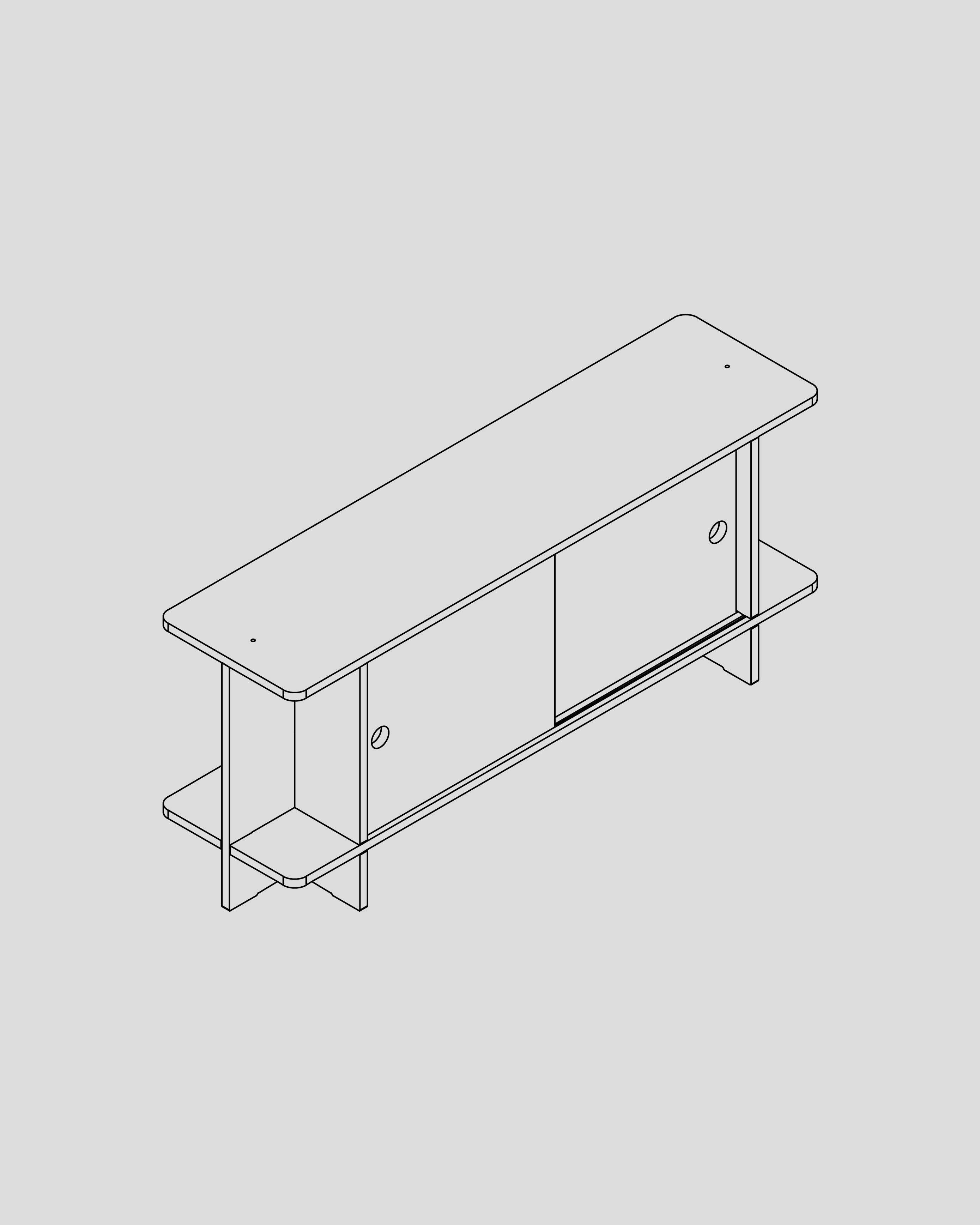

Step 11
Finished
