Angle Chair — Assembly guide
Step 1
Insert the nut into the plastic housing. Press firmly to ensure it sits fully inside. Repeat for all.
Step 2
Insert the plastic housing with the nut inside, into the pill-shaped slot. Ensure it’s oriented as shown and no part is protruding. Repeat for all.
Step 3

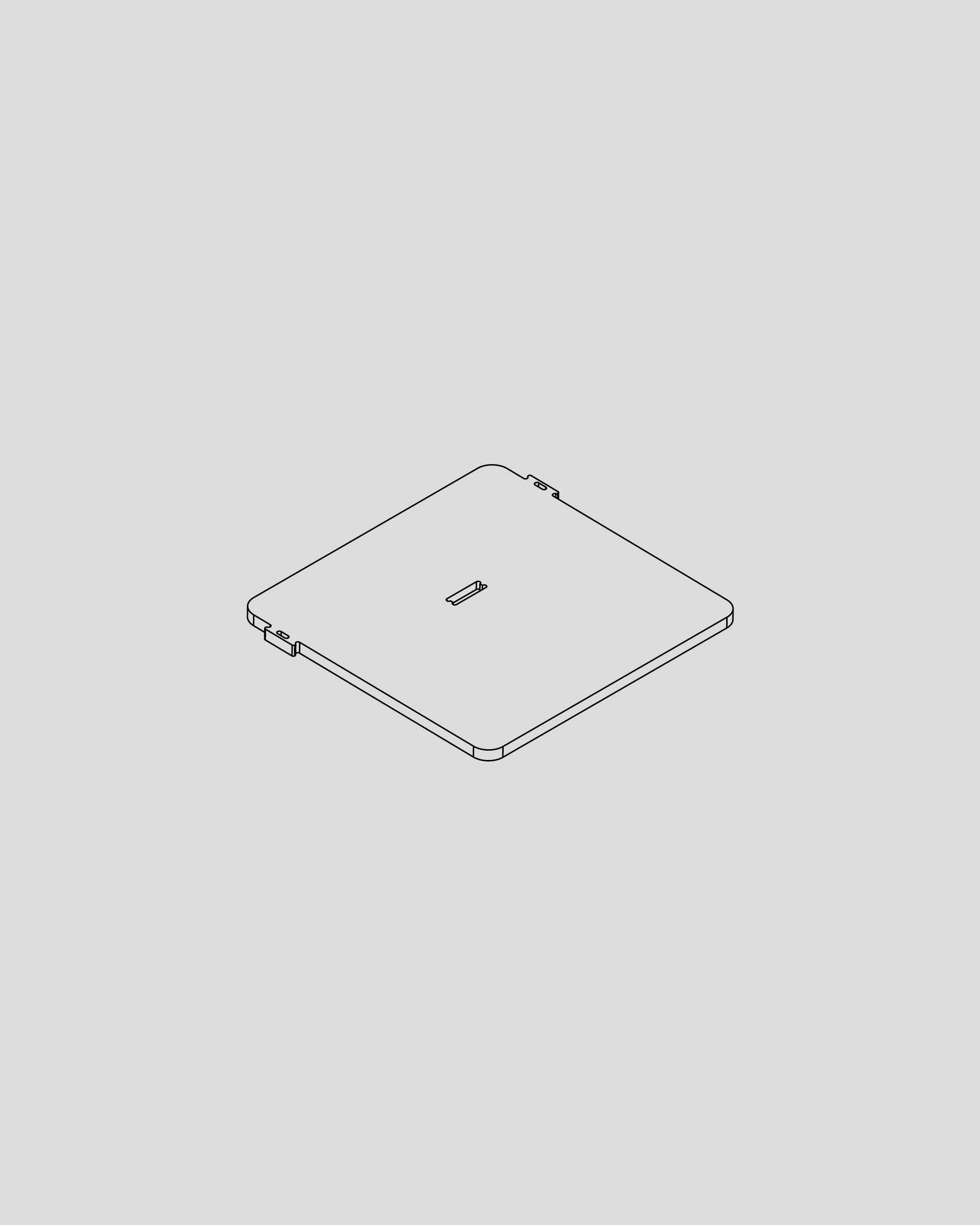

Place the seat on a flat and soft surface with the pocket facing upward.
Step 4

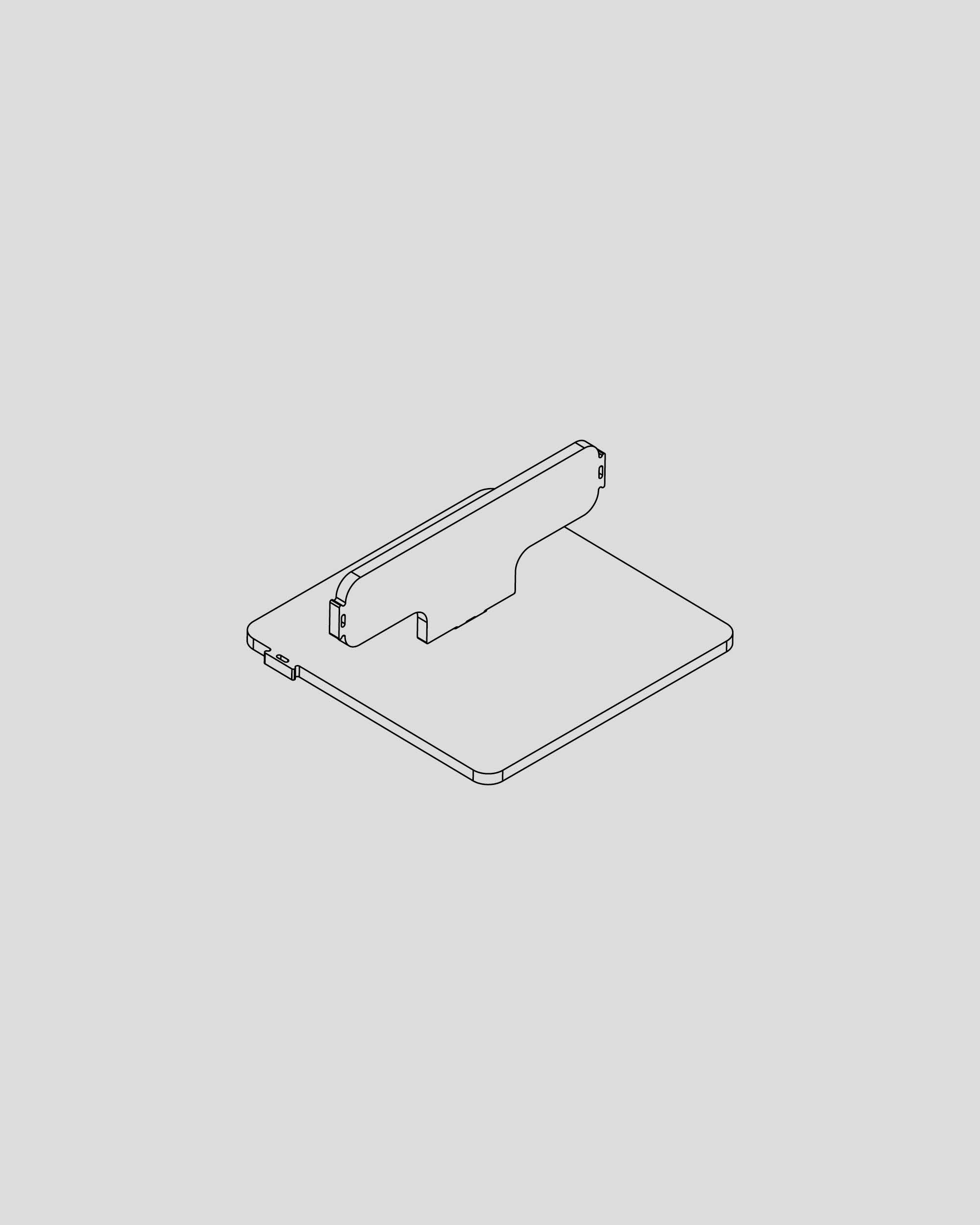

Fit the seat support into the pocket of the seat

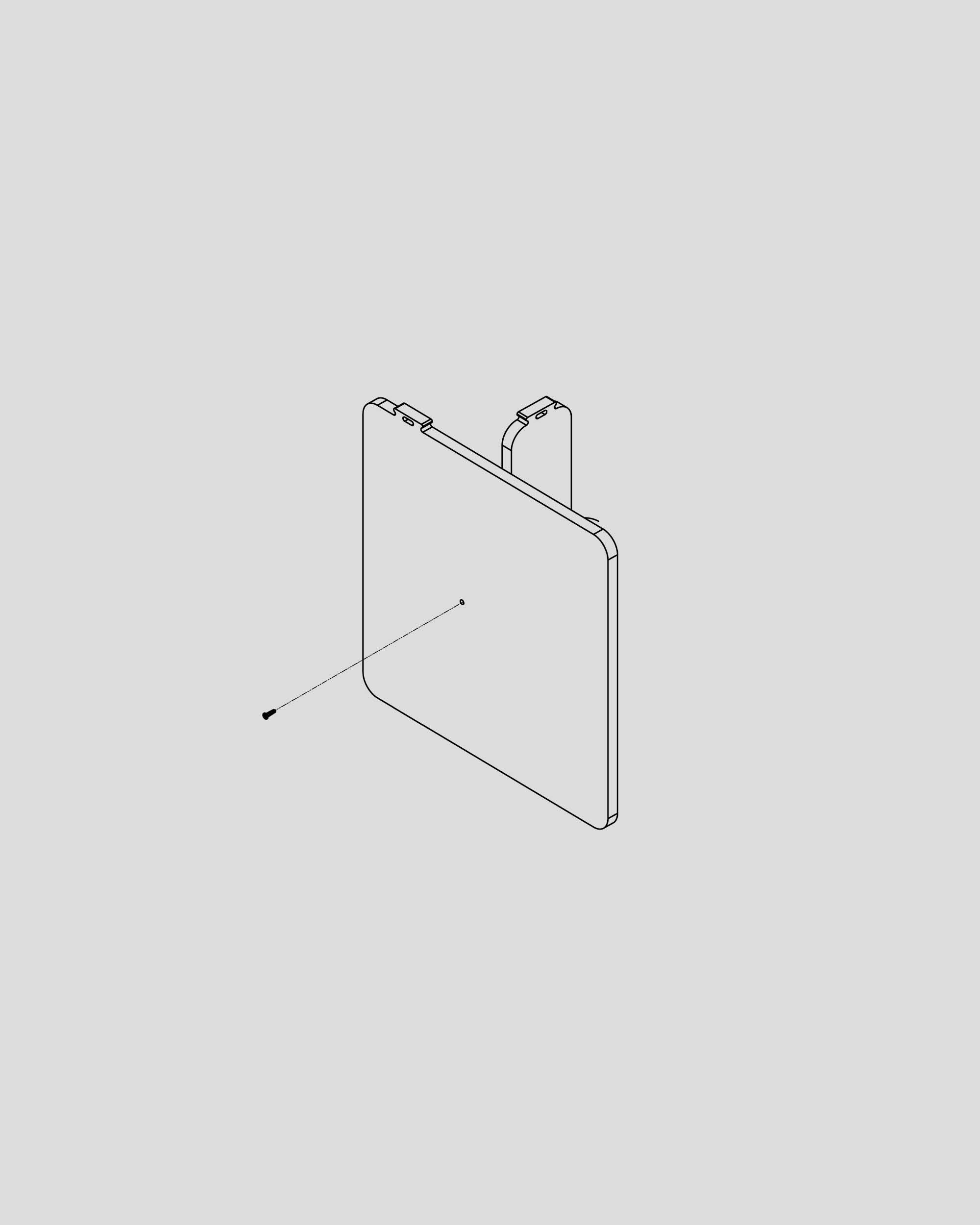

Step 5
Flip the seat and support onto their side. Using a non-electric flat-head screwdriver, drive in the screw. Stop when the head sits flush with the surface; avoid over-tightening. Ensure the seat support is fully inserted into the seat. Set aside.
Step 6

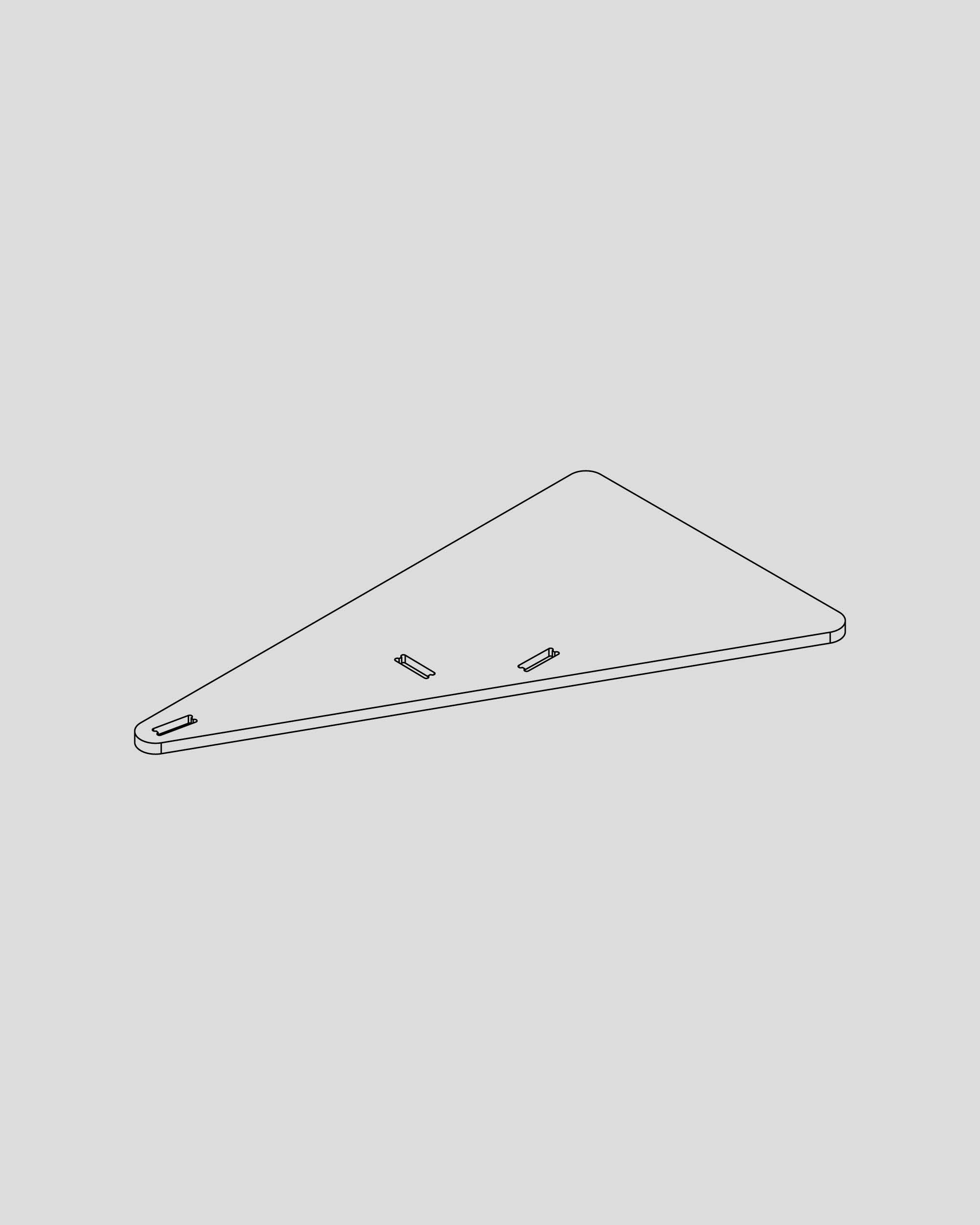

Place one of the legs on a flat and soft surface with the pockets facing upward.
Step 7

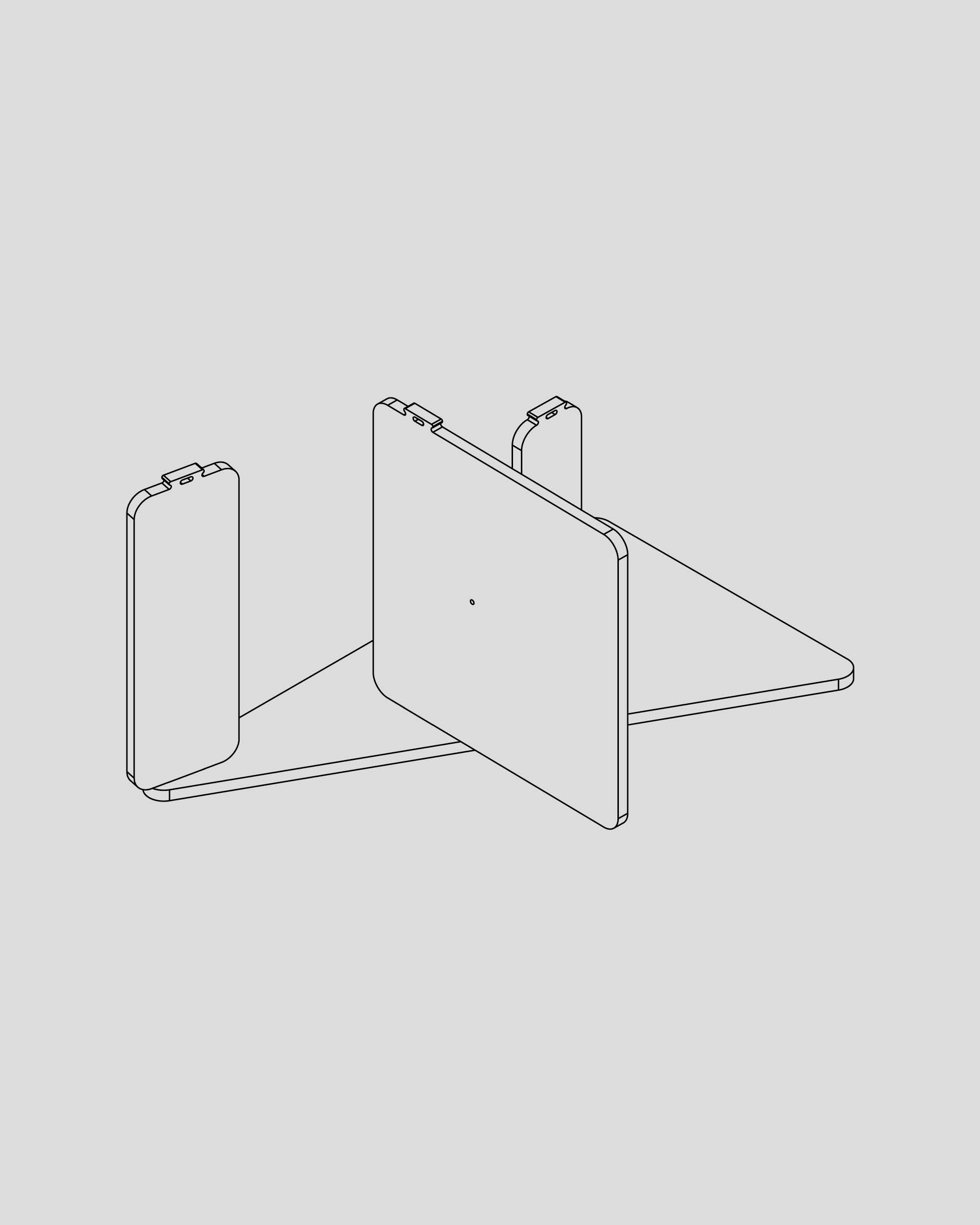

Fit the backrest, seat and seat support into their corresponding pockets.
Step 8

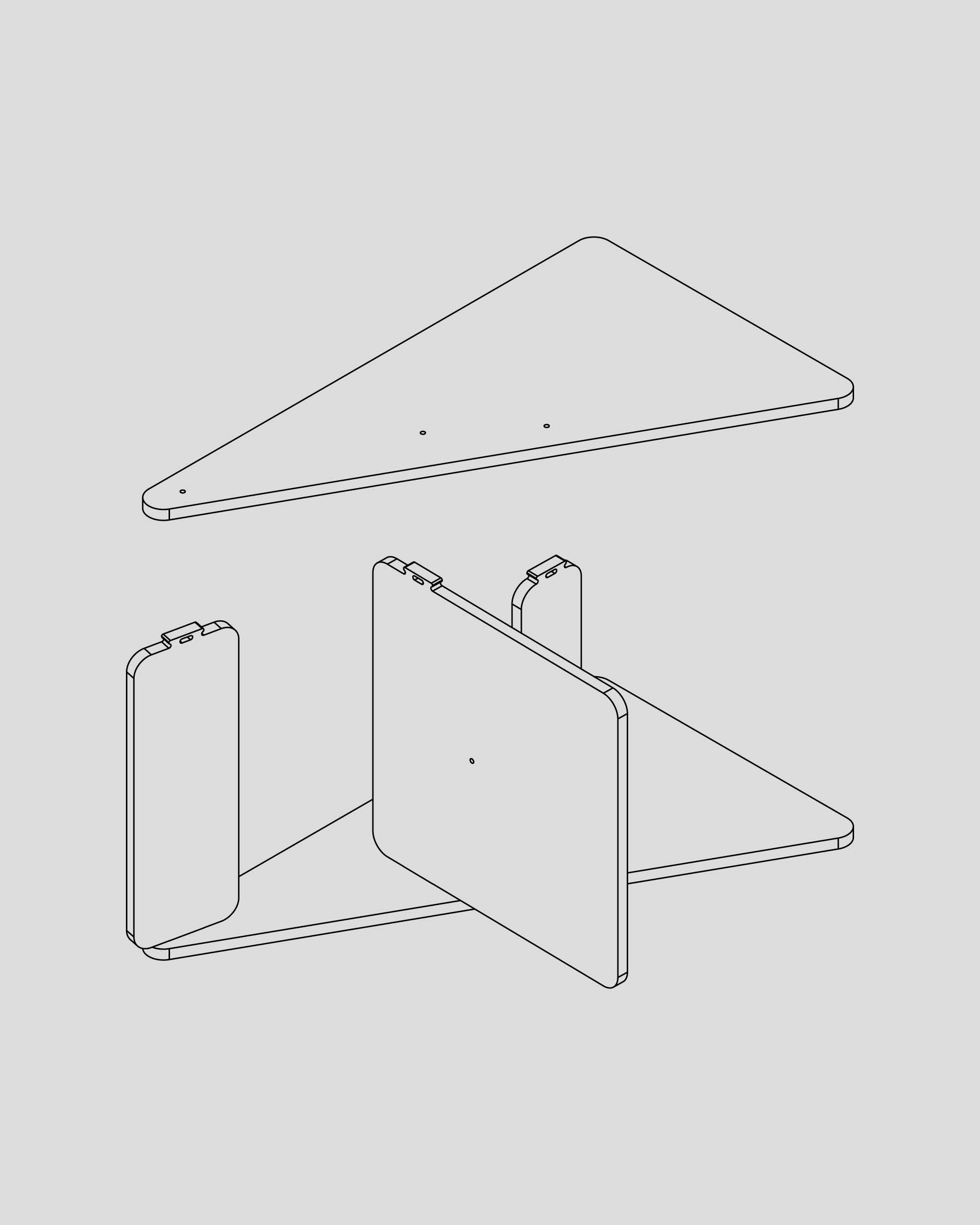

Fit the remaining side onto the backrest, seat and seat support. Fit all pieces into their corresponding pockets. Take your time.
Step 9

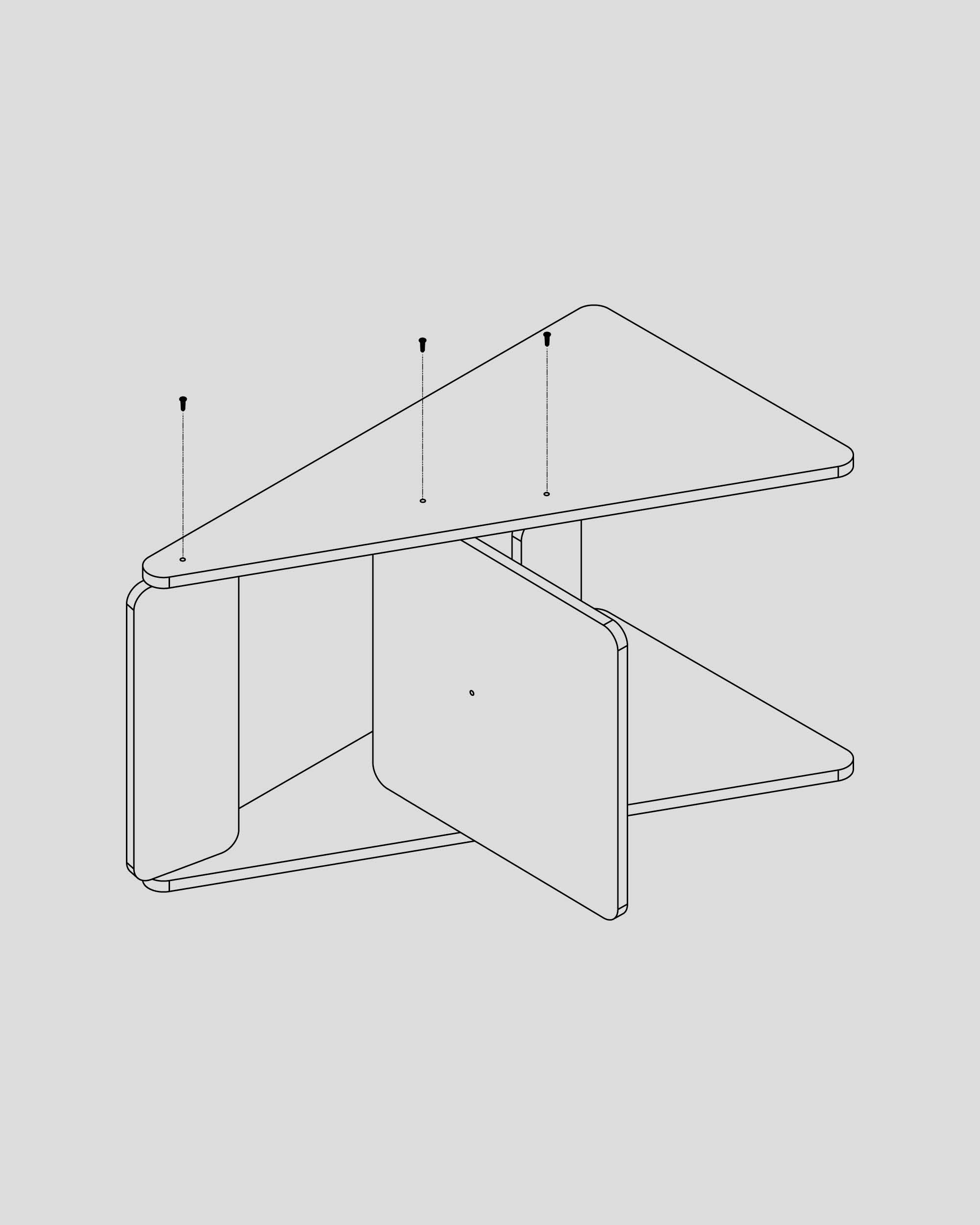

Using a non-electric flat-head screwdriver, drive in the three screws to secure the side piece. Stop when the head sits flush with the surface; avoid over-tightening. Carefully flip the chair so it is resting on its back, ensuring the pieces remain securely in their pockets.

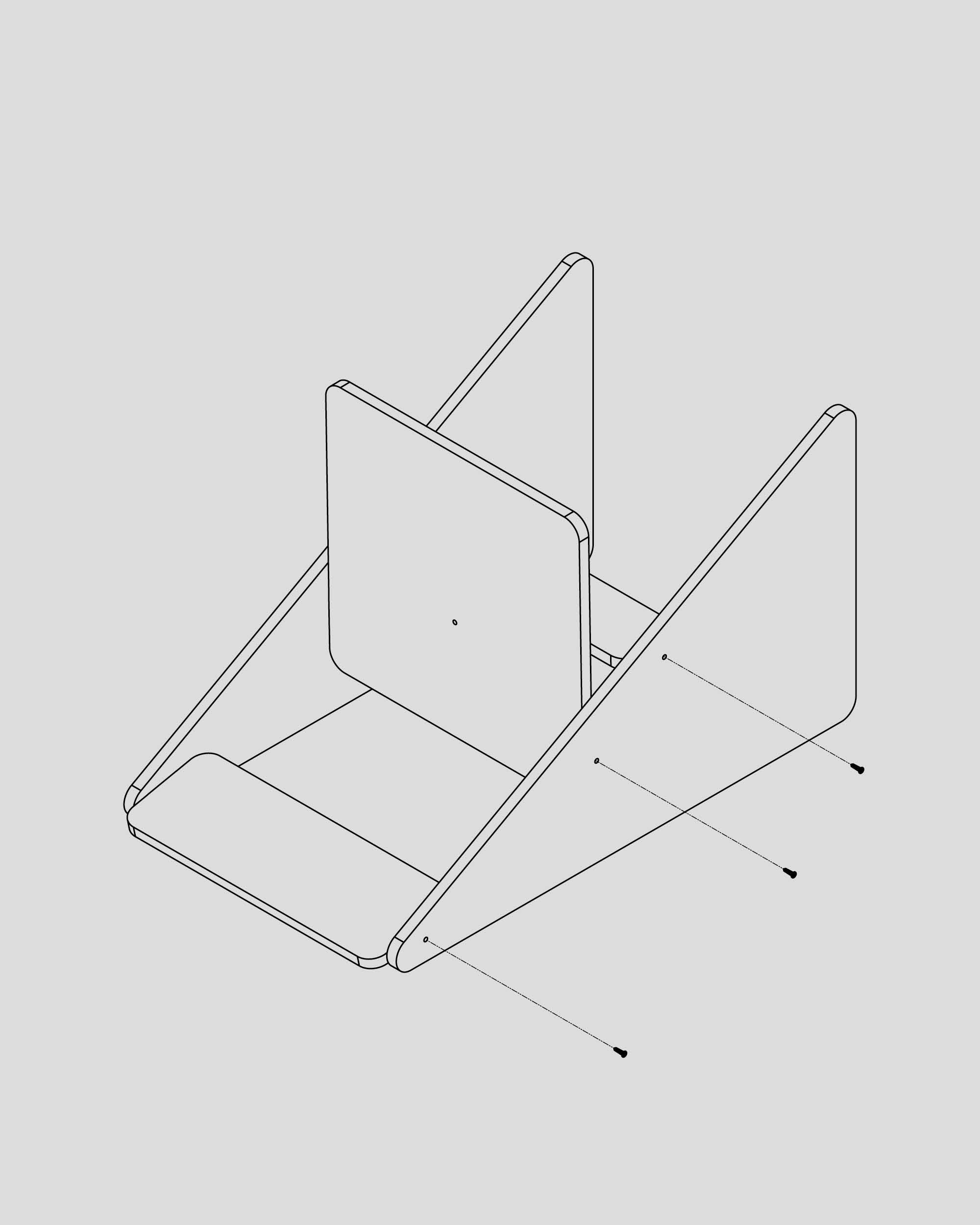

Step 10

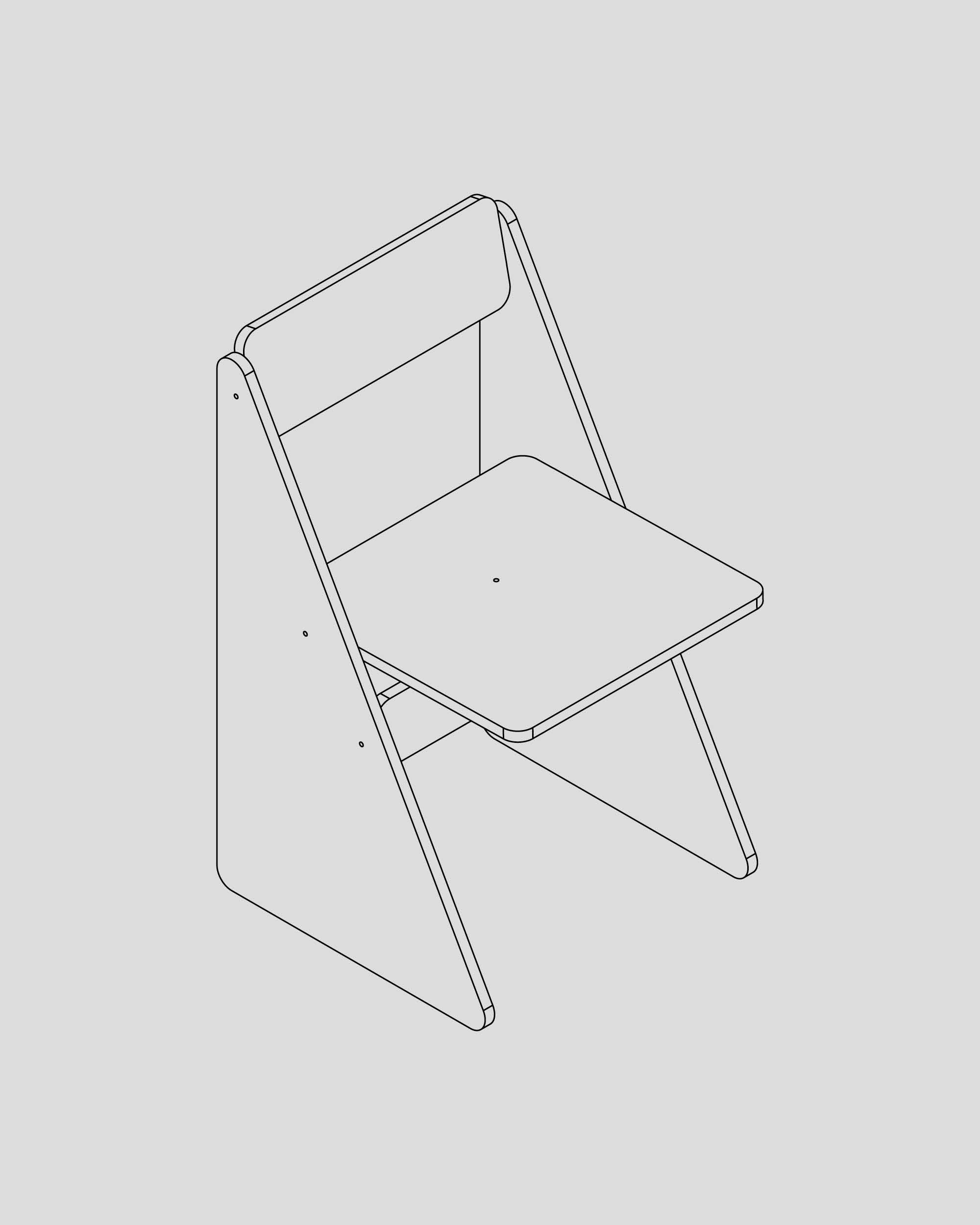

Drive in the remaining three screws using a non-electric flat-head screwdriver. Stop when the head is flush with the surface; avoid over-tightening. Flip the chair over so it stands on the floor.
Step 11

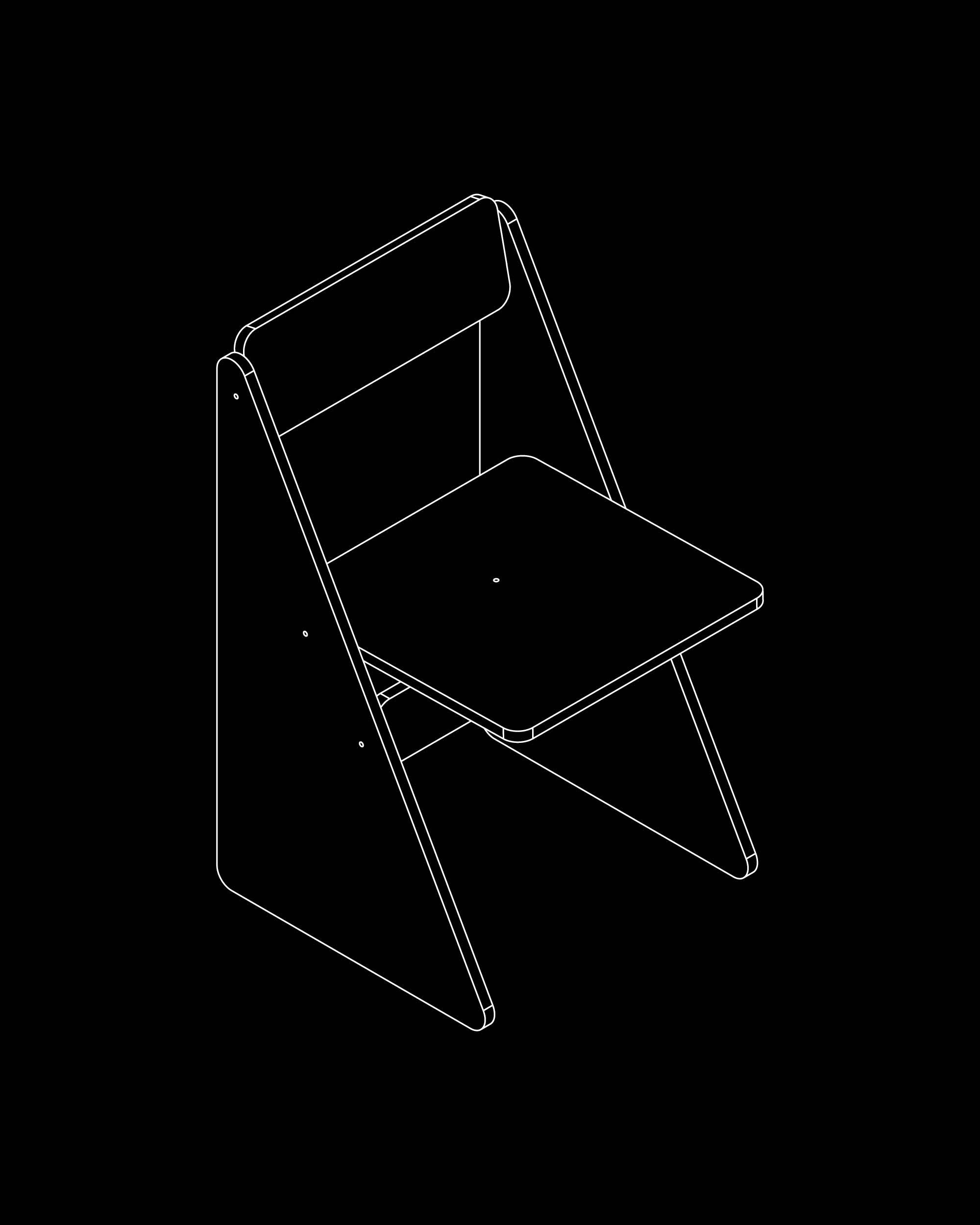

Finished
